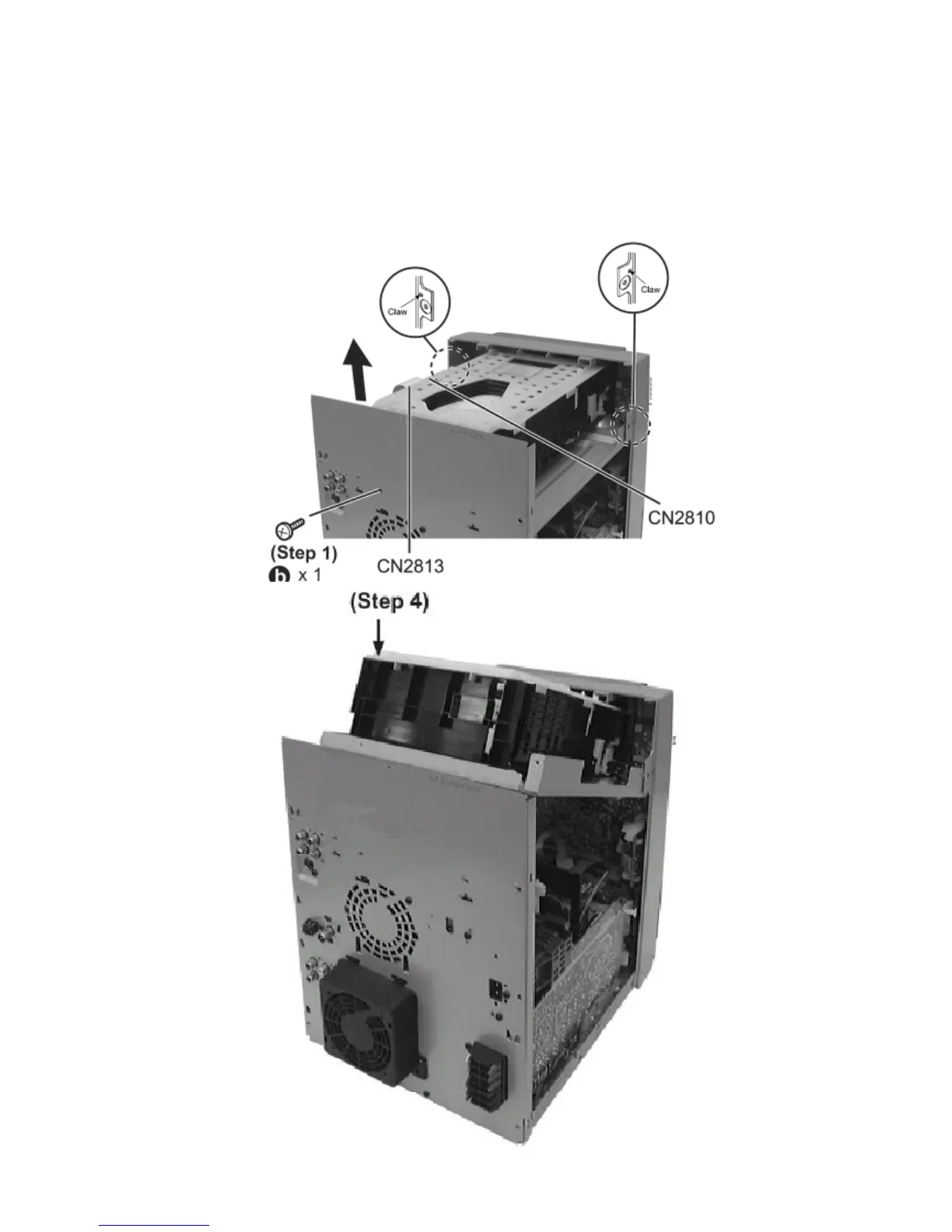

17.3 Disassembly for DVD changer unit
• Follow the (Step 1) - (Step 2) of Item 17.2.
Step 1 Detach FFC Boards (CN2811 & CN2815).
Step 2 Remove 1 screw at rear cabinet as show below.
Step 3 Lift the DVD changer unit upwards.
Step 4 Release the claws on both ends, and remove the DVD changer unit.
