Step 5 Fix back the bottom chasis with a screw as shown.
NOTE:
Insulate Power P.C.B. with insulation material to avoid short circuit.
17.5.4 Disassembly of Transformer P.C.B.& Voltage
Selector P.C.B.
• Follow the (Step 1) - (Step 2) of Item 17.2.
• Follow the (Step 1) - (Step 4) of Item 17.3.

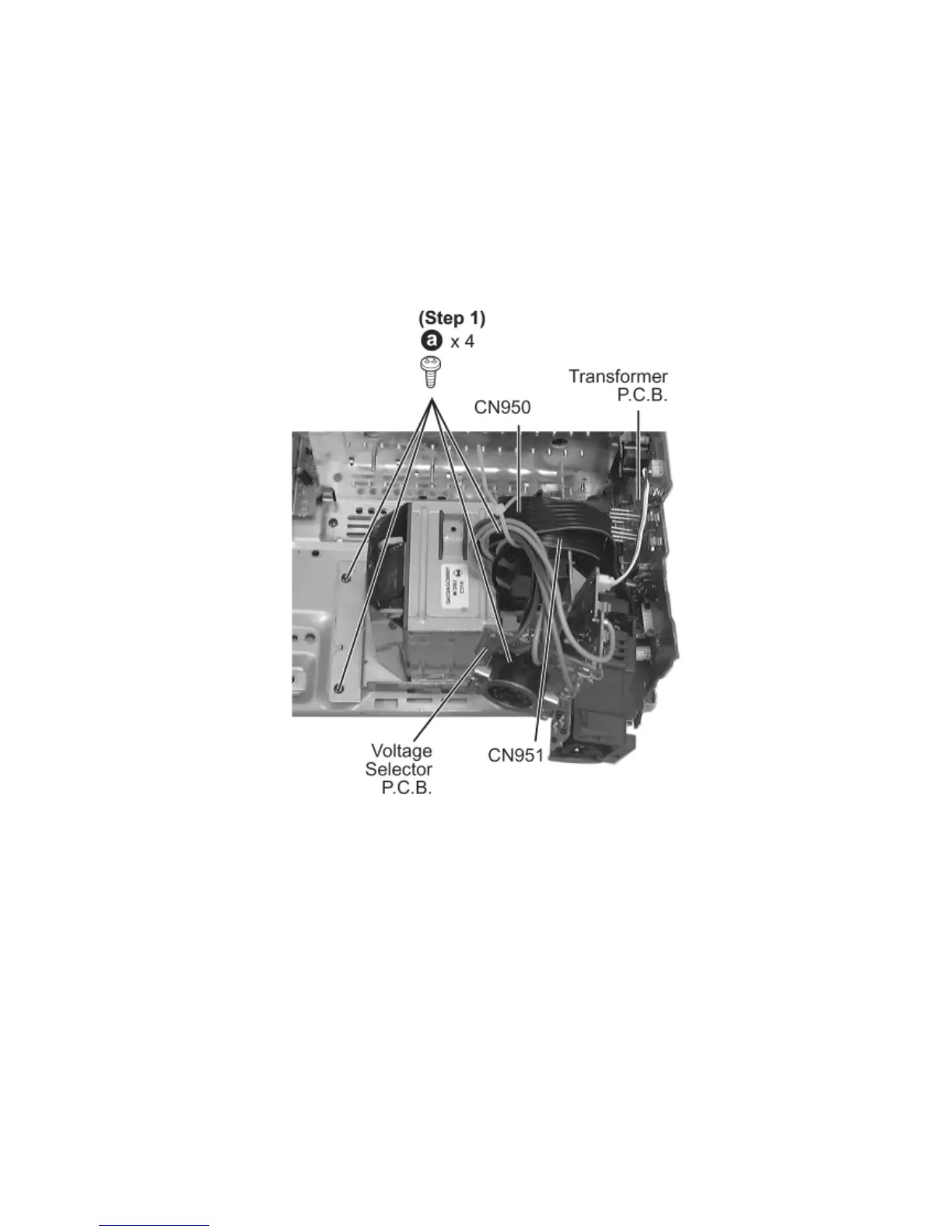

Step 1 Remove 4 screws.
Step 2 Disconnect connector CN950 & CN951.
17.6 Replacement for traverse deck
• Follow the (Step 1) - (Step 2) of Item 17.2.
• Follow the (Step 1) - (Step 4) of Item 17.3.
• Follow the (Step 1) - (Step 3) of Item 17.3.1.
Step 1 Move ribs at both sides to the arrow direction (The verticval rack (R) slides and the groove opens).
