Panasonic SC-TM72DV - AM-IF Alignment Procedure

19.2 Tuner Section
19.2.1 AM-IF Alignment
19.2.2 AM RF Adjustment
19.2.1 AM-IF Alignment

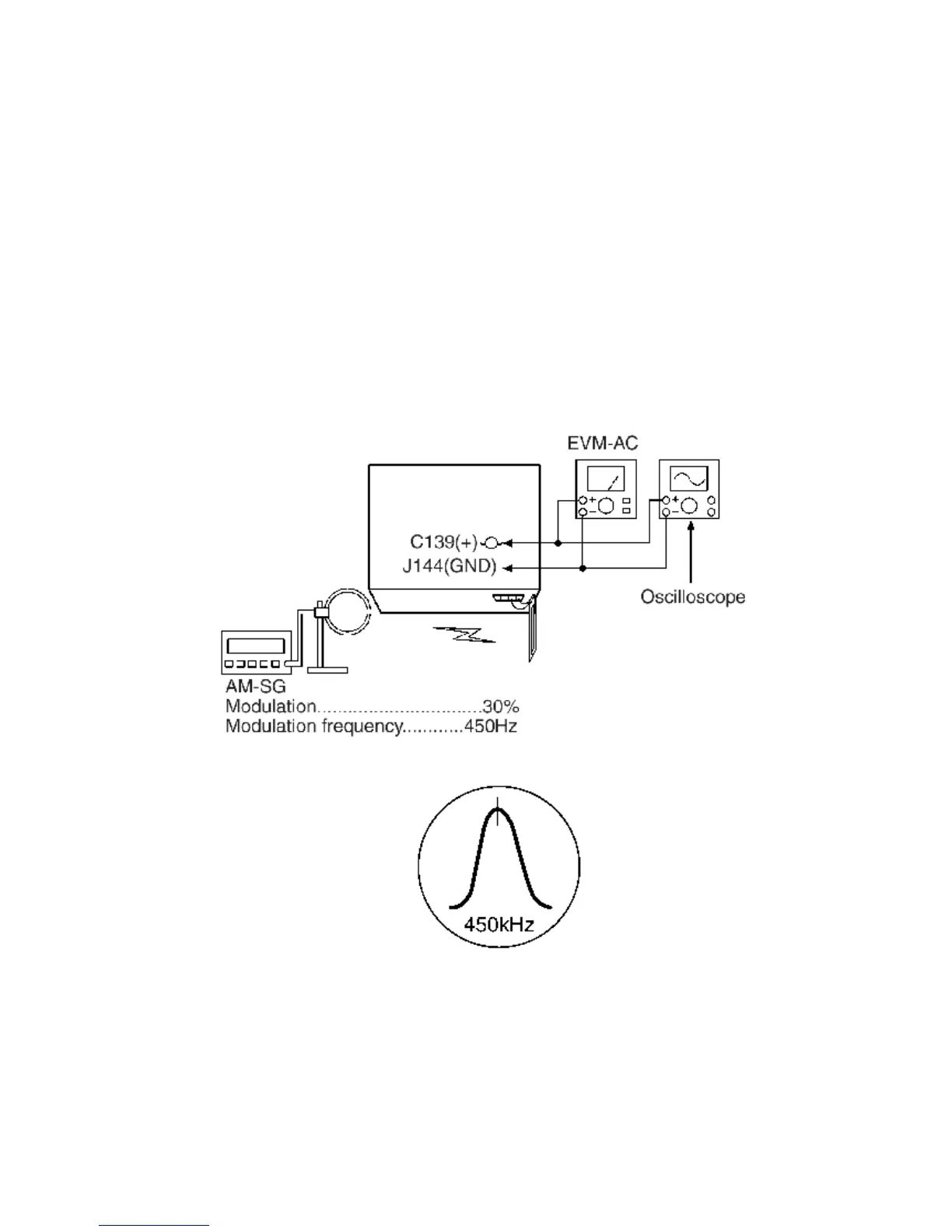

1. Connect the instrument as shown in Fig. 5.
2. Set the unit to AM mode.
3. Apply signal as shown in Fig. 5 from AM-SG.
4. Adjust Z102 so that the output frequency is maximized in Fig. 6.
