Panasonic SC-TM72DV - Disassembly of Power Amp P.C.B

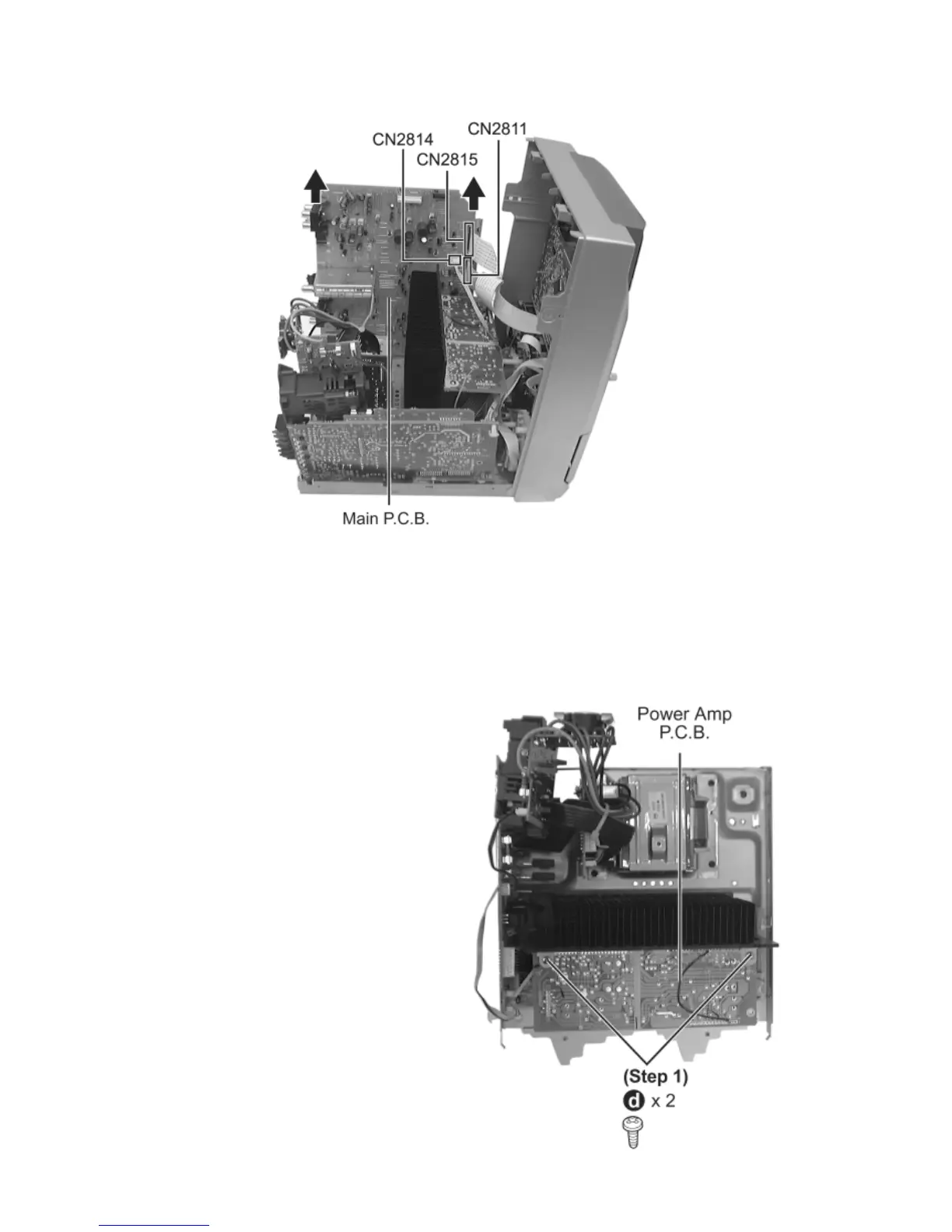

Step 4 Detach FFC boards (CN2811, CN2814 & CN2815).
Step 5 Lift up Main P.C.B. as arrow shown.
17.5.1 Disassembly of Power Amp P.C.B.
17.5.2 Disassembly of Power P.C.B.
17.5.3 Disassembly of Power Supply P.C.B.
17.5.4 Disassembly of Transformer P.C.B. & Voltage Selector P.C.B.
17.5.1 Disassembly of Power Amp P.C.B.
• Follow the (Step 1) - (Step 2) of Item 17.2.
• Follow the (Step 1) - (Step 4) of Item 17.3.
• Follow the (Step 1) - (Step 4) of Item 17.4.
• Follow the (Step 1) - (Step 3) of Item 17.5.
Step 1 Remove the 2 screws.
