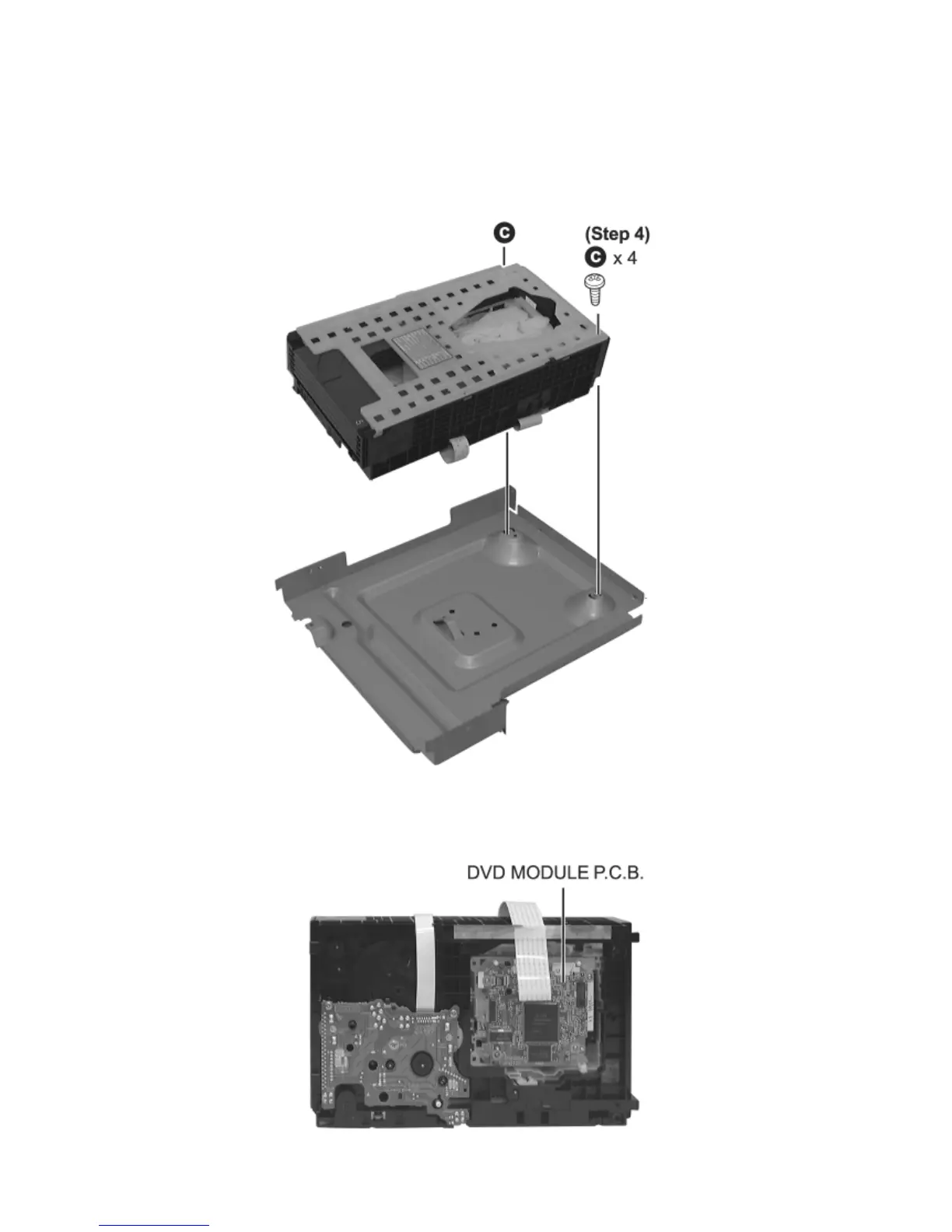

17.3.1 Disassembly of the DVD Module P.C.B.

17.3.1 Disassembly of the DVD Module P.C.B.

• Follow the (Step 1) - (Step 2) of Item 17.2.

• Follow the (Step 1) - (Step 4) of Item 17.3.

Step 1 Remove 2 screws.

Step 2 Remove the mechanism unit cover.

Step 3 Lay the unit.
