Step 11 Disconnect connector W601B.
Step 12 Remove 5 screws.
Step 13 Draw Tact Switch P.C.B. forward.
17.4.1 Disassembly of Lid
17.4.1 Disassembly of Lid
• Follow the (Step 1) - (Step 2) of Item 17.2.
• Follow the (Step 1) - (Step 4) of Item 17.3.
• Follow the (Step 1) - (Step 4) of Item 17.4.

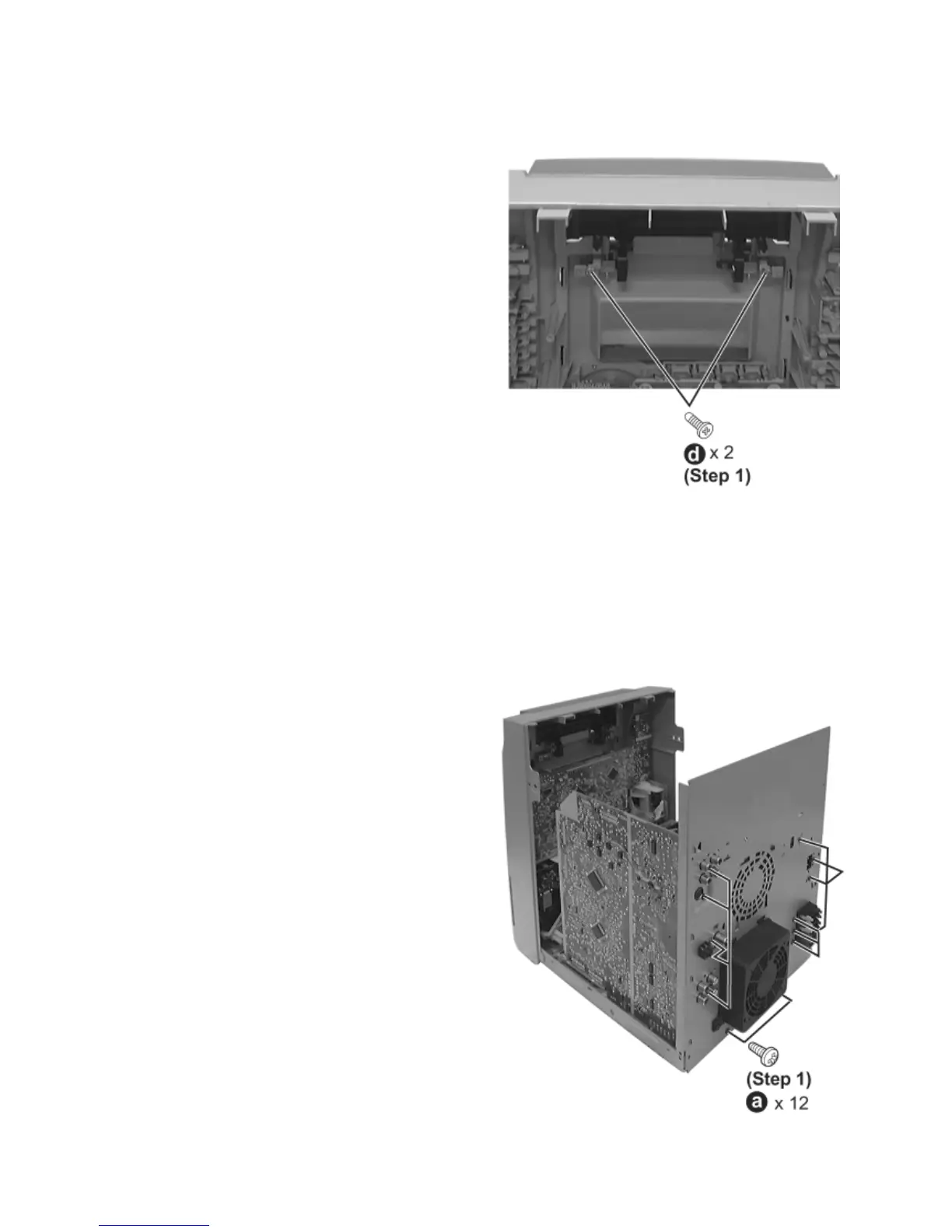

Step 1 Remove 2 screws.
Step 2 Lift the spring sideward.
Step 3 Remove Lid.
Note: Do not misplace the spring.
17.5 Disassembly of Main P.C.B., Power P.C.B., , Power
Amp P.C.B., Power Supply P.C.B., Transformer
P.C.B.& Voltage Selector P.C.B.
• Follow the (Step 1) - (Step 2) of Item 17.2.
• Follow the (Step 1) - (Step 4) of Item 17.3.
• Disassembly of Main P.C.B.
Step 1 Remove the 12 screws.
Step 2 Detach CN2808 & CN2809 (Fan).
Step 3 Push the catch outwards & draw
the rear panel to remove it.
