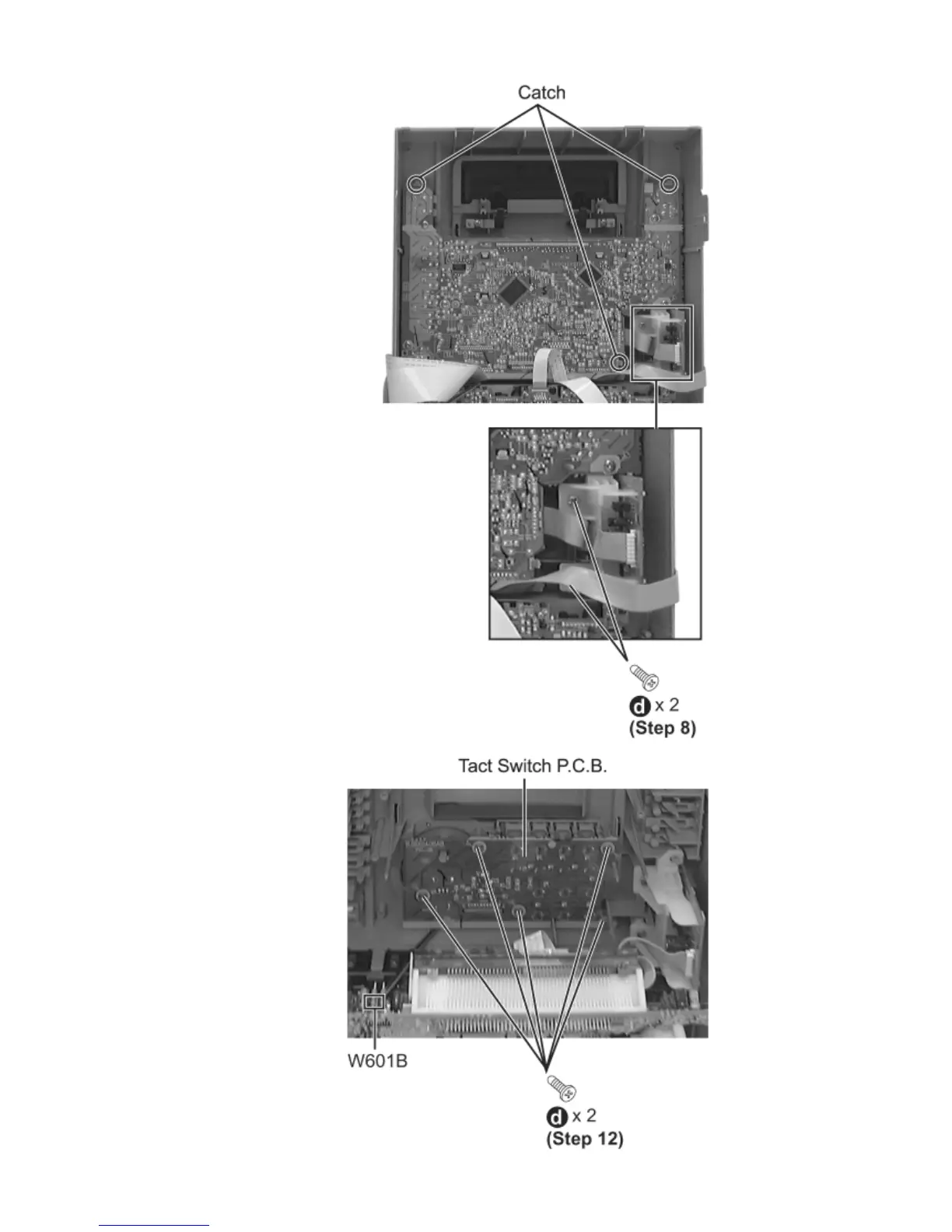

Step 7 Release 3 catches.

Step 8 Remove 2 screws.

Step 9 Lift up Mic P.C.B. to remove it.

• Disassembly of Tact Switch P.C.B.

Step 10 Remove the volume knob.
