Step 3 Remove 2 screws at the bottom chassis.

Step 4 Release the 2 claws, and then draw the front panel ass’y forward.

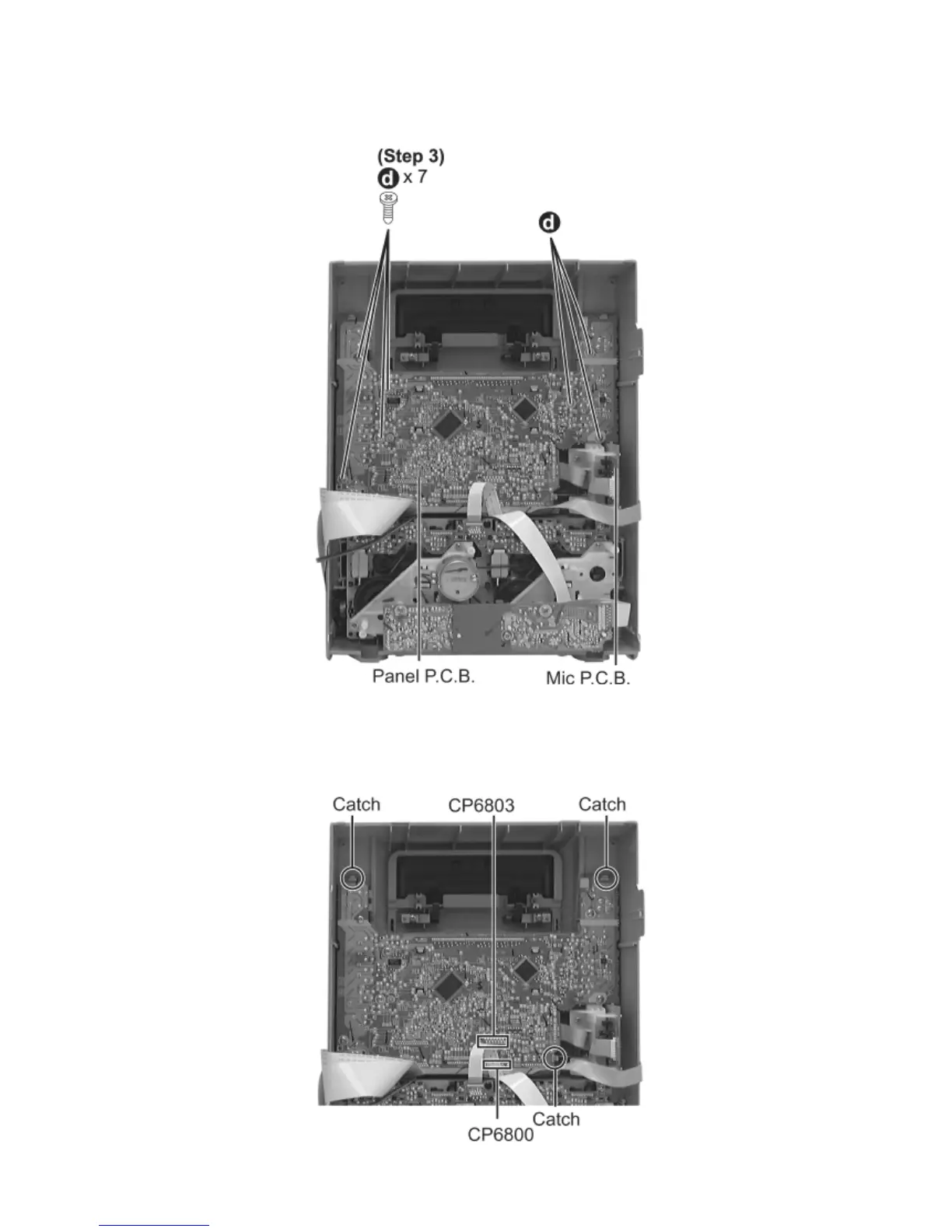

• Disassembly of Panel P.C.B. & Mic P.C.B.

Step 5 Remove 7 screws.

Step 6 Detach FFC board (CP6803 & CP6800).
