Panasonic SC-TM72DV

To Next Page

To Previous Page

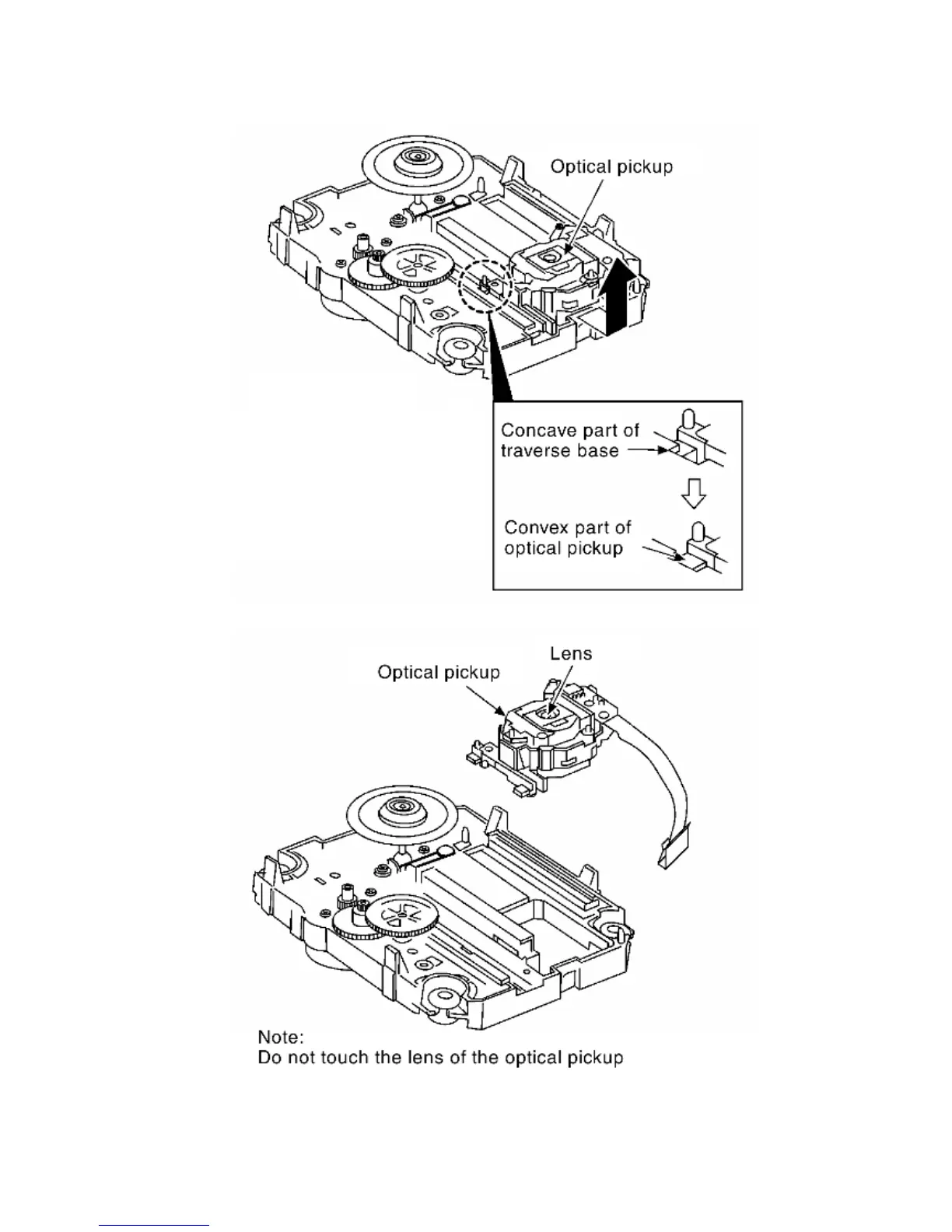

Step 11 Place the convex part of an optical pickup to the concave part of a traverse base, then take out the optical pickup.
