Panasonic TH-50PH9UK - Removal of the J-Board; Removal of the HX-Board; Removal of the PB-Board

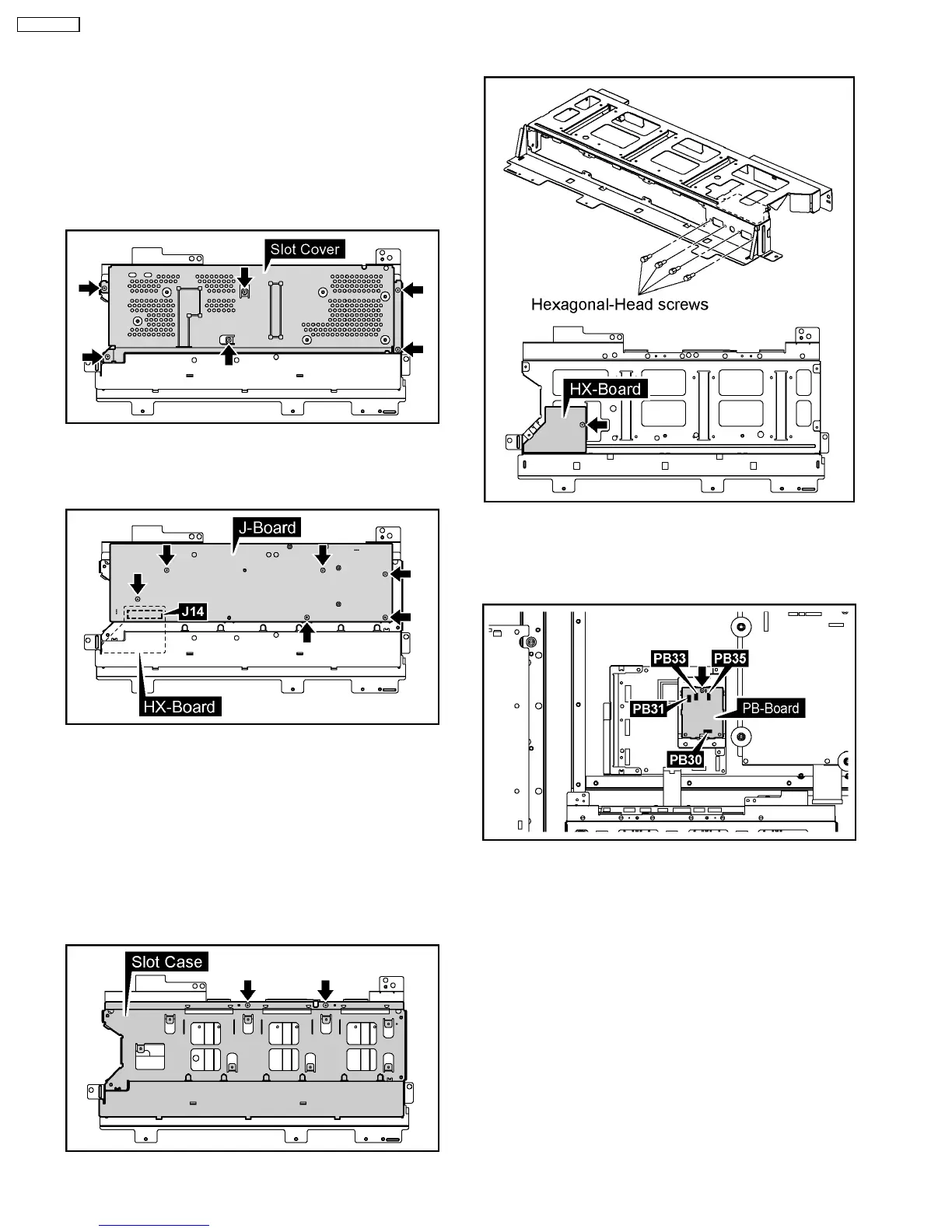

6.5. Removal of the J-Board
1. Remove the HU Terminal Block and the HA Terminal Block.
(Reference to Removal of the HU-Board and the HA-
Board)
2. Remove the Slot Block.
(Reference to Removal of the Slot Block)
3. The Slot Block is turned inside out.
4. Remove the 6 screws and then remove the Slot cover.
5. Remove the 6 screws.
6. Release the coupler(J14) from HX-Board and then remove
the J-Board.
6.6. Removal of the HX-Board
1. Remove the HU Terminal Block and the HA Terminal Block.
(Reference to Removal of the HU-Board and the HA-Board)
2. Remove the Slot Block.
(Reference to Removal of the Slot Block)
3. Remove the J-Board.
(Reference to Removal of the J-Board)
4. Remove the 2 screws and then remove the Slot Case.
5. Remove the 4 Hexagonal-Head screws and the 1 screw
and then remove the HX-Board.
6.7. Removal of the PB-Board
1. Disconnect the couplers(PB30, PB31, PB33, PB35).
2. Remove the 1 screw and then remove the PB-Board.
