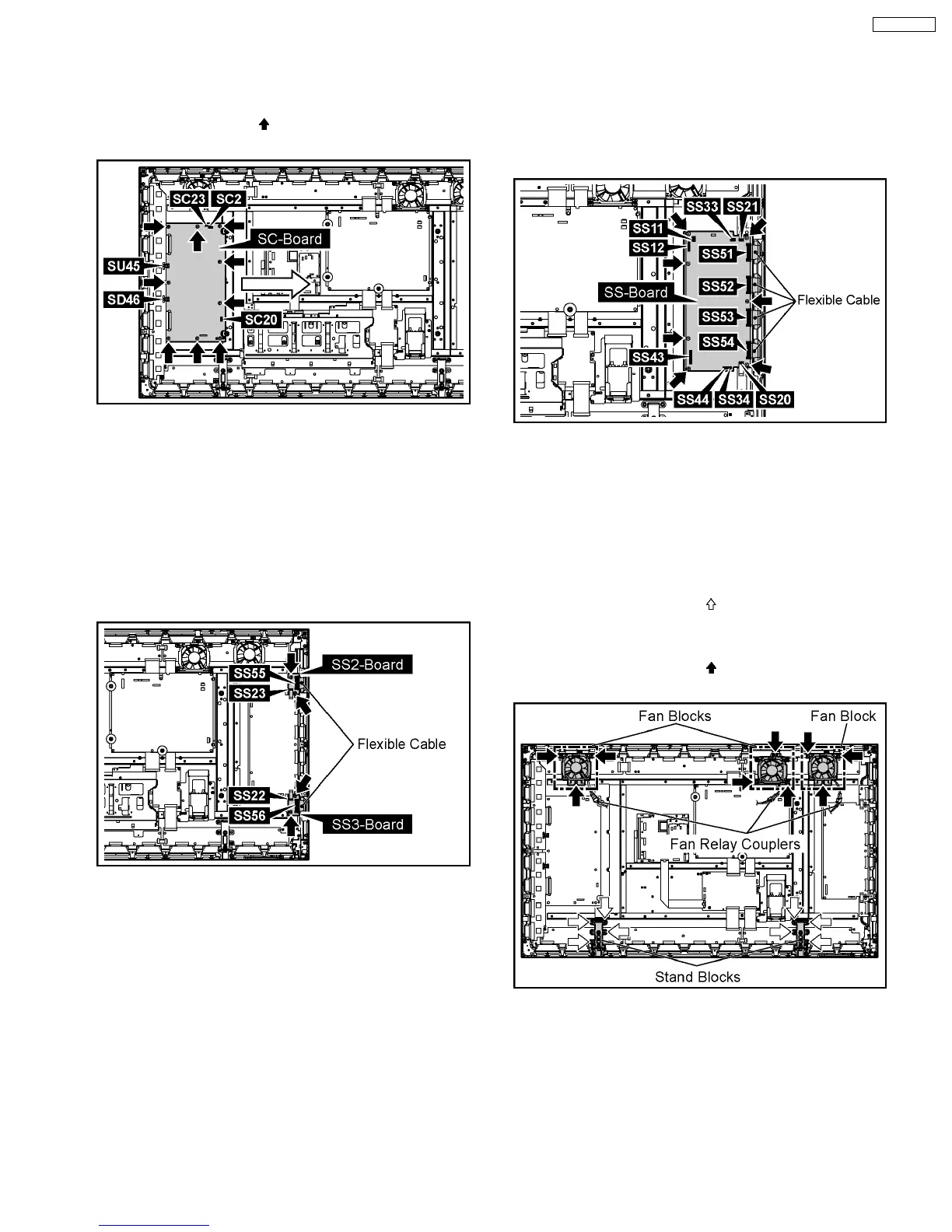

6.13. Removal of the SC-Board
1. Disconnect the couplers(SU45, SD46).
2. Disconnect the couplers(SC2, SC20, SC23).
3. Remove the 9 screws (
) and then slide the SC-Board to
the right.
6.14. Removal of the SS2-Board and
the SS3-Board
1. Disconnect the coupler(SS23).
2. Disconnect the Flexible Cable(SS55).
3. Disconnect the coupler(SS22).
4. Disconnect the Flexible Cable(SS56).
5. Remove 2 screws each and then remove the SS2-
Board and the SS3-Board.
6.15. Removal of the SS-Board
1. Disconnect the couplers(SS11, SS12, SS20, SS21, SS33,
SS34, SS43, SS44).
2. Remove the Flexible Cable from the couplers(SS51, SS52,
SS53, SS54).
3. Remove the 7 screws and then remove the SS-Board.
6.16. Removal of the C1, C2, C3, C4,
C5 and the C6-Board
1. Remove the Slot Block.
(Reference to remove of the Slot Block).
2. Remove the Speaker Terminal Block(L, R).
(Refernce to remove of the Speaker Terminal Block(L, R).
3. Remove 4 screws each (
) and then remove the Stand
Blocks(L, R).
4. Disconnect the Fan Relay Couplers.
5. Remove 3 screws each (
) and then remove the 3 Fan
Blocks.
