Panasonic TH-50PH9UK - Removal of the S1-Board; Removal of the Fan

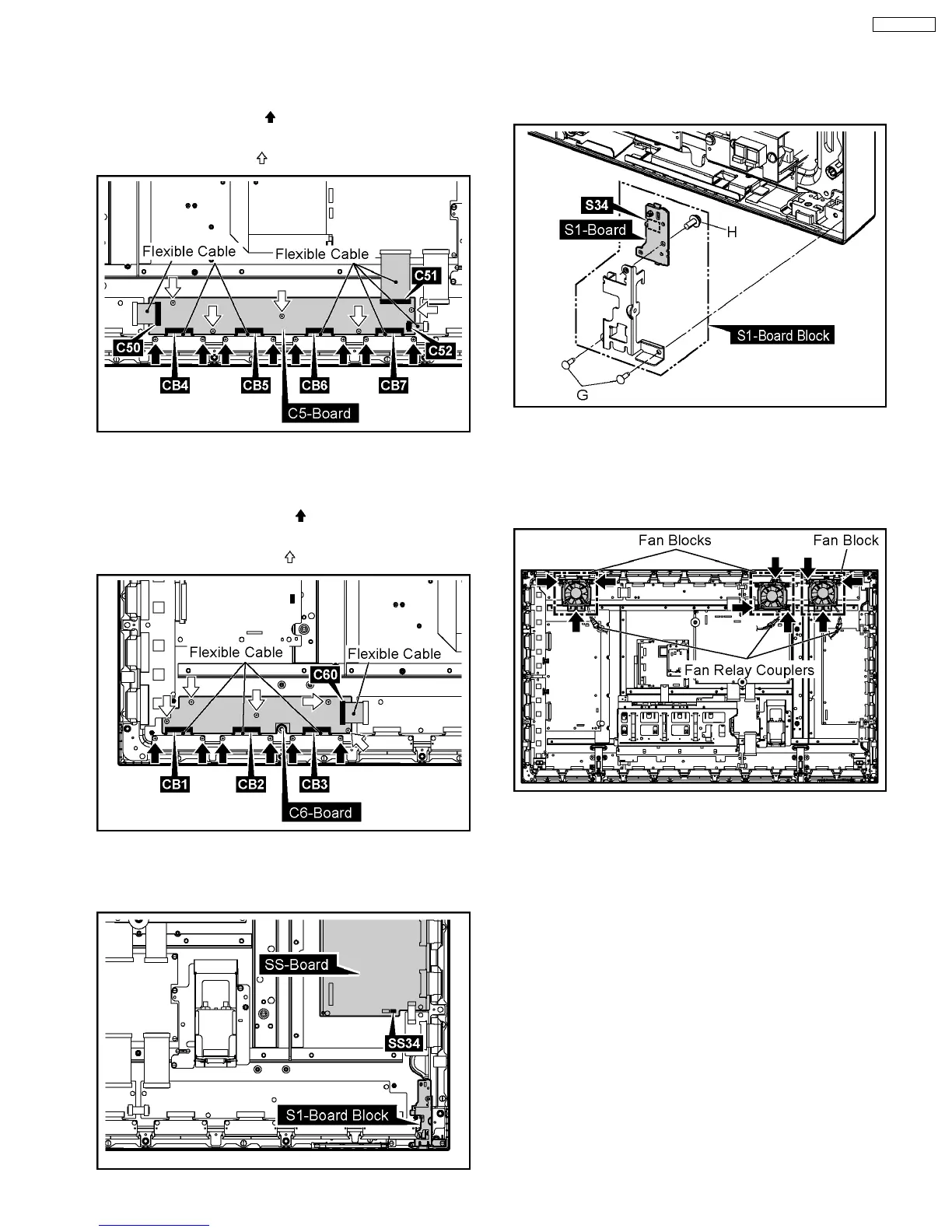

6.16.5. Removal of the C5-Board
1. Remove the Flexible Cable from the couplers(C50, C51,
C52).
2. Remove the 8 screws (
) and then remove the Flexible
Cable from the couplers(CB4, CB5, CB6, CB7).
3. Remove the 5 screws (
) and then remove the C5-Board.
6.16.6. Removal of the C6-Board
1. Remove the Flexible Cable from the coupler(C60).
2. Remove the 6 screws and (
) then remove the Flexible
Cable from the couplers(CB1, CB2, CB3).
3. Remove the 5 screws and (
) then remove the C6-Board.
6.17. Removal of the S1-Board
1. Disconnect the coupler(SS34).
2. Remove the 2 screws(G) and then remove the S1-Board
Block.
3. Disconnect the coupler(S34).
4. Remove the 1 screw(H) and then remove the S1-Board.
6.18. Removal of the Fan
1. Disconnect the Fan Relay Couplers.
2. Remove 3 screws each and then remove the 3 Fan
Blocks.
15
TH-50PH9UK
