8 Adjustment Procedure
8.1. Driver Set-up
8.1.1. Item / Preparation
1. Input a white signal of the RGB signal generator.
Aging pattern : 0
2. Set the picture adjustment items as follows.
· Picture menu : Standard
· Color temperature : Normal
· Picture : 25
· Aspect : Full
8.1.2. Adjustments

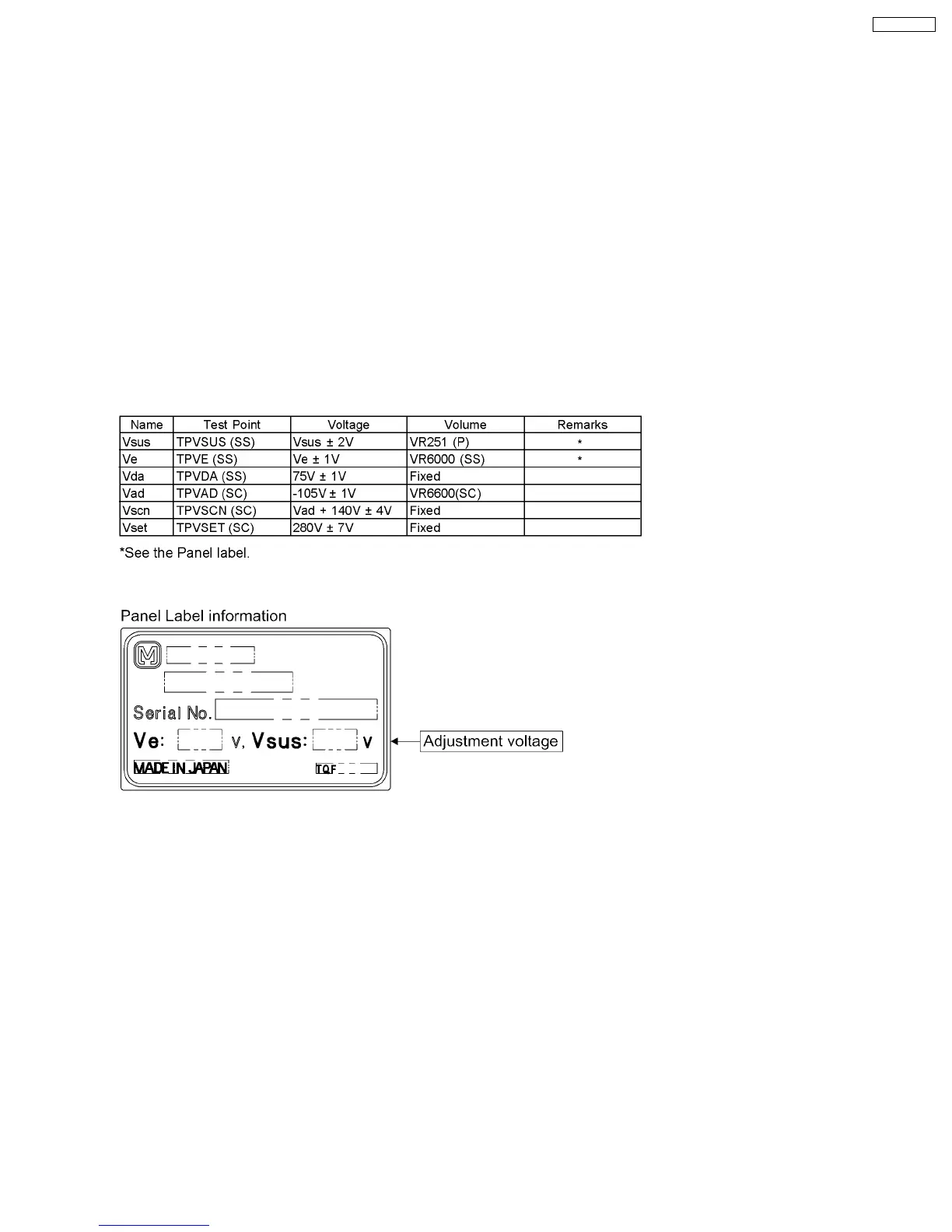

Adjust driver section voltages referring the panel data on the panel data label.
Caution
1. First perform Vsus voltage adjustment.
2. Confirmation of Vscn voltage should be performed after confirmation of Vad voltage adjustment.
When Vad = -105V, Voltage of Vscn is 35V ± 4V.
