Panasonic TH-50PH9UK - Removal of the D-Board; Removal of the H3-Board (L, R); Removal of the SU-Board and the SD-Board

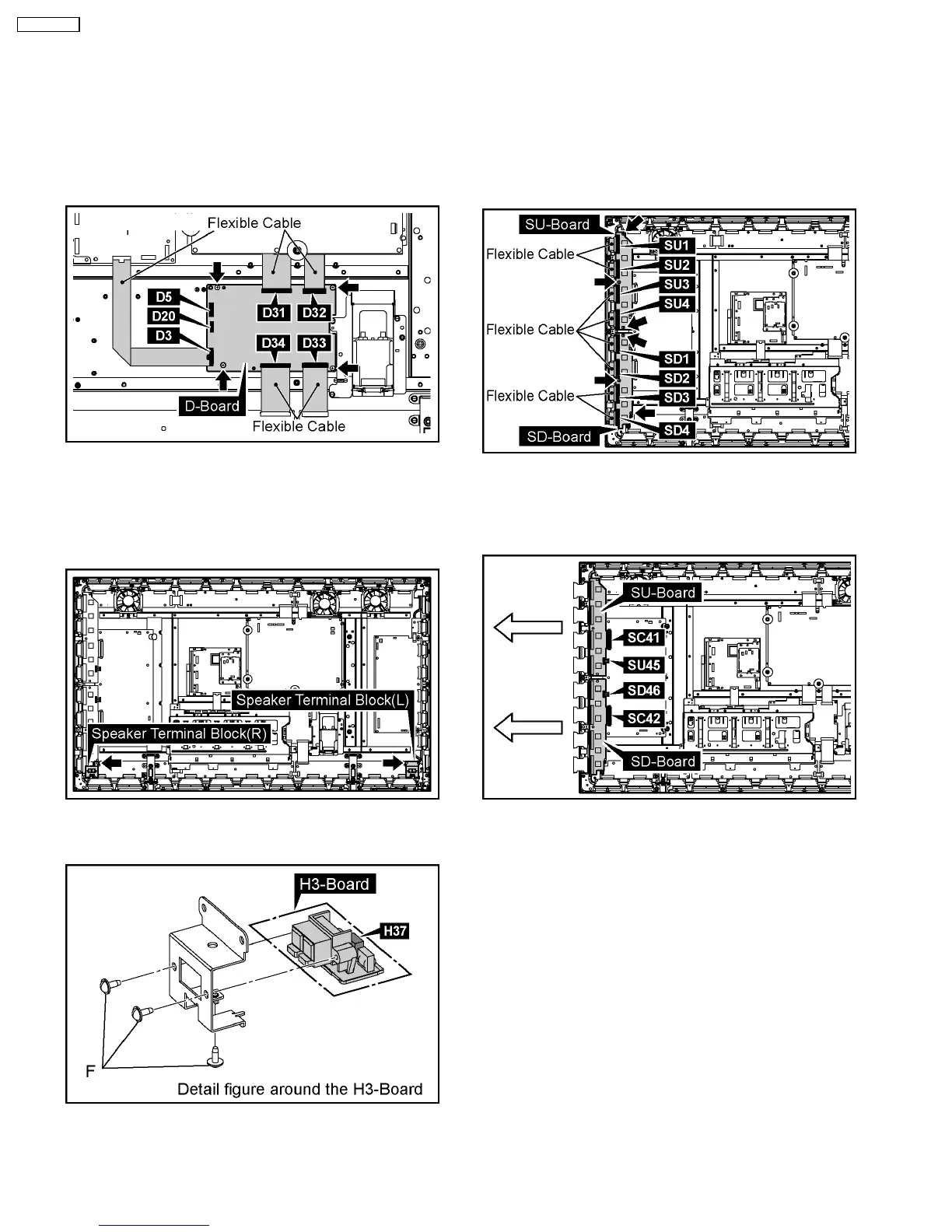

6.10. Removal of the D-Board
1. Remove the Slot Block.
(Reference to Removal of the Slot Block)
2. Disconnect the couplers(D5, D20)
3. Remove the Flexible Cable from the couplers (D3, D31,
D32, D33, D34).
4. Remove the 4 screws and then remove the D-Board.
6.11. Removal of the H3-Board (L,
R)
1. Remove 1 screw each and then remove the Speaker
Terminal Block (L, R).
2. Disconnect the coupler(H37).
3. Remove the 3 screws (F) and then remove the H3-Board.
6.12. Removal of the SU-Board and
the SD-Board
1. Remove the Speaker Terminal Block(R).
(Reference to Removal of the H3-Board(L, R))
2. Remove the Flexible Cable from the couplers(SU1, SU2,
SU3, SU4, SD1, SD2, SD3, SD4).
3. Remove the 6 screws.
4. Disconnect the couplers(SU45, SD46).
5. Slide the SU-Board and the SD-Board to the left, remove
the SU-Board and the SD-Board from the couplers(SC41,
SC42).
