Panasonic TH-50PH9UK - Removal of the Plasma Panel

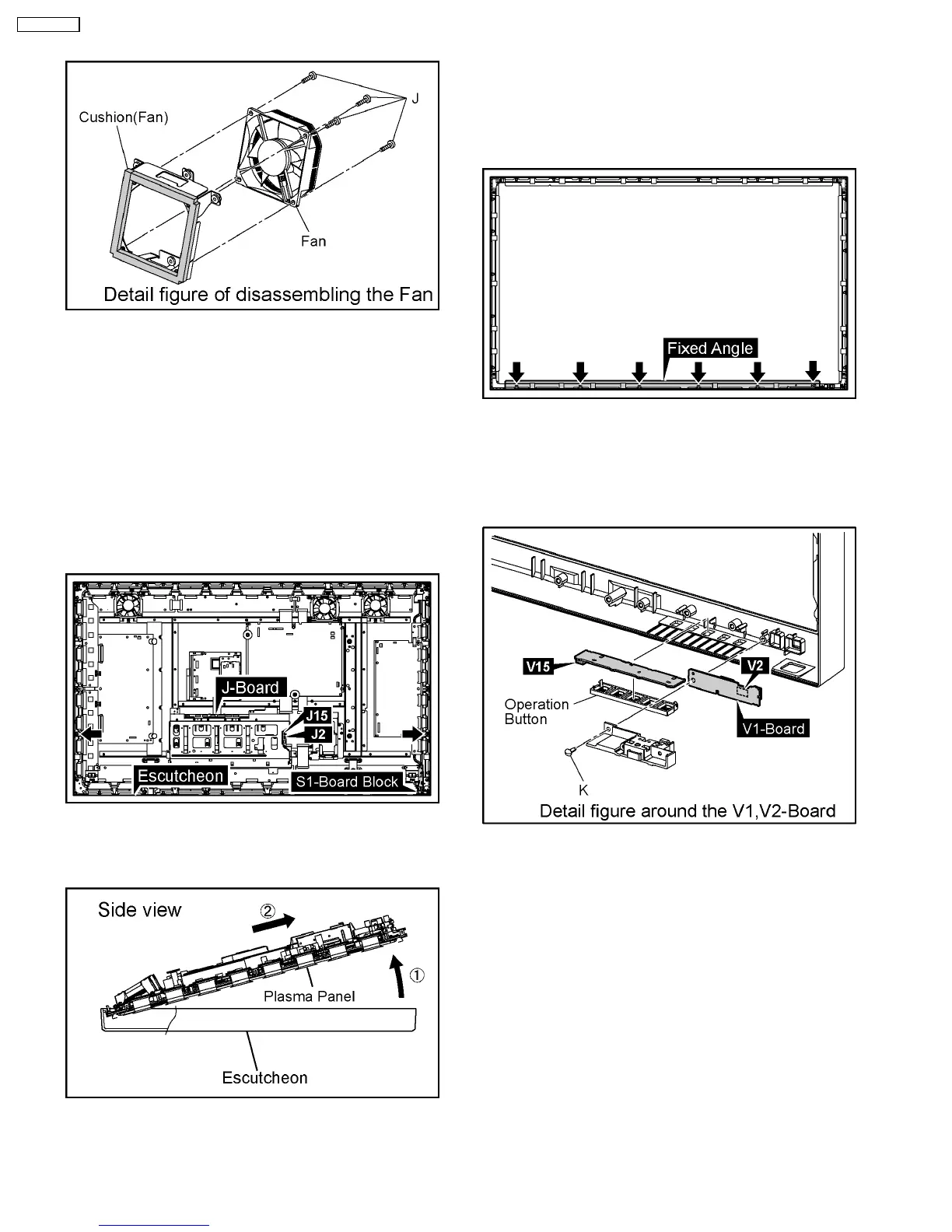

3. Remove 4 screws each (J) and then remove the Fans.
4. Reassemble the Fans in reverse order.
5. Stick the Cushion (Fan) around the Fan.
Note:
The Cushion (Fan) are unsuitable to reuse.
Please use a new one at the time of Fan exchange.
6.19. Removal of the Escutcheon
1. Remove the S1-Board Block.
(Reference to Removal of the S1-Board)
2. Disconnect the couplers(J2, J15).
3. Remove the 2 screws of the Escutcheon.
4. Pull the bottom of the Plasma Panel forward (arrow1).
5. Slide the Plasma Panel and then remove the Plasma Panel
(arrow2).
6.20. Removal of the V1-Board and
the V2-Board
1. Remove the Escutcheon.
(Reference to Removal of the Escutcheon)
2. Remove the 6 screws and then remove the Fixed Angle.
3. Remove the 1 screw(K).
4. Disconnect the coupler(V2) and then remove the V1-Board.
5. Remove the operation button from the V2-Board.
6. Disconnect the coupler(V15) and then remove the V2-
Board.
16
TH-50PH9UK
