Panasonic TH-50PH9UK - Page 14

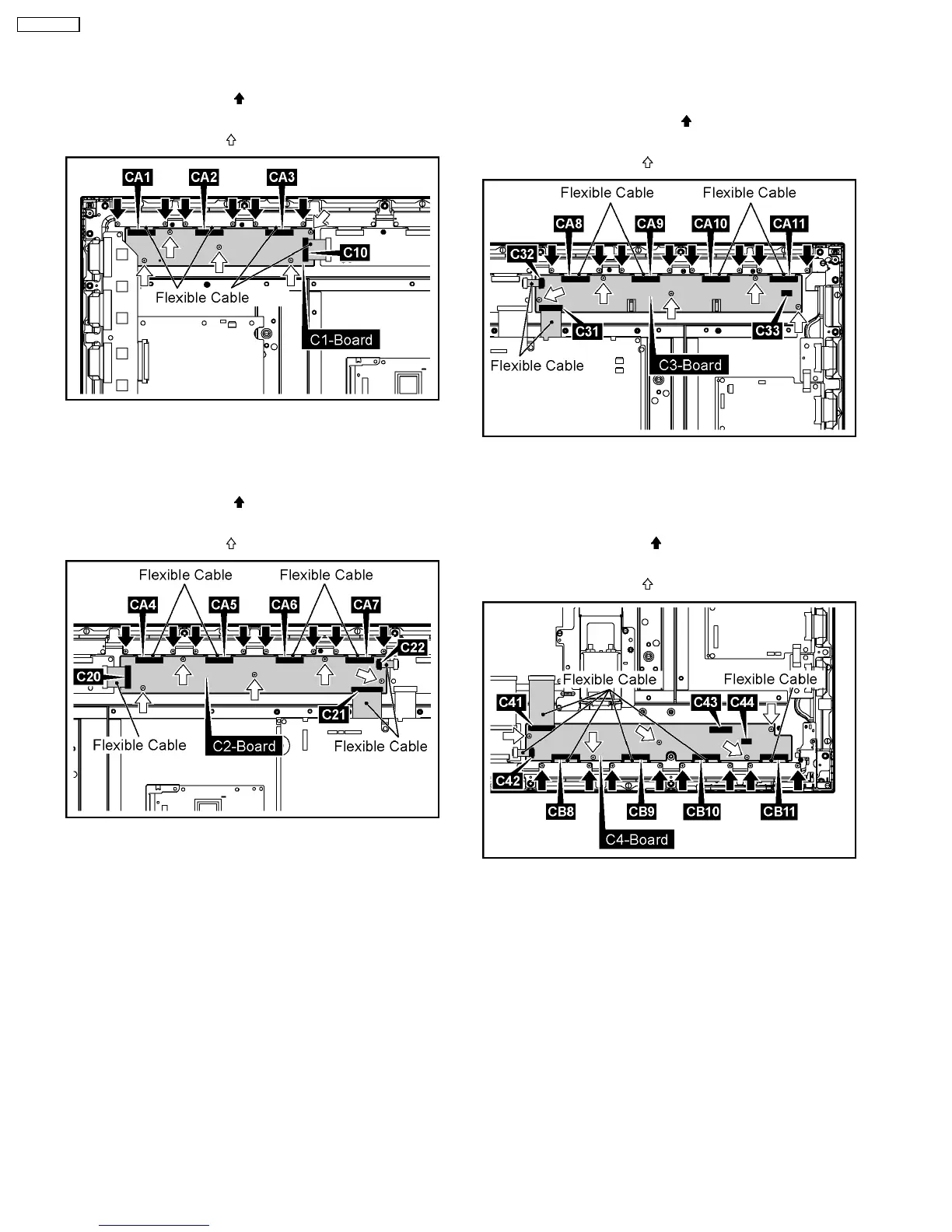

6.16.1. Removal of the C1-Board
1. Remove the Flexible Cable from the coupler(C10).
2. Remove the 6 screws (
) and then remove the Flexible
Cable from the couplers(CA1, CA2, CA3).
3. Remove the 5 screws (
) and then remove the C1-Board.
6.16.2. Removal of the C2-Board
1. Remove the Flexible Cable from the couplers(C20, C21,
C22).
2. Remove the 8 screws (
) and then remove the Flexible
Cable from the couplers(CA4, CA5, CA6, CA7).
3. Remove the 5 screws (
) and then remove the C2-Board.
6.16.3. Removal of the C3-Board
1. Remove the Flexible Cable from the couplers(C31, C32).
2. Disconnect the couplers(C33).
3. Remove the 8 screws and (
) then remove the Flexible
Cable from the couplers(CA8, CA9, CA10, CA11).
4. Remove the 5 screws (
) and then remove the C3-Board.
6.16.4. Removal of the C4-Board
1. Remove the Flexible Cable from the couplers(C41, C42).
2. Disconnect the couplers(C43, C44).
3. Remove the 8 screws (
) and then remove the Flexible
Cable from the couplers(CB8, CB9, CB10,CB11).
4. Remove the 5 screws (
) and then remove the C4-Board.
14
TH-50PH9UK
