Parker G1 - Dimensions

G1 - G9
65
2.1.1 Dimensions
DOMNICK HUNTER LTD.
DANGER
DISCONNECT THE
MAINS SUPPLY BEFORE
REMOVING THIS COVER
DISCONNECT THE
MAINS SUPPLY BEFORE
REMOVING THIS COVER
LIVE TERMINALS
ENCLOSED
WARNING
GENERATOR MUST BE SHUT
DOWN AND DEPRESSURISED
BEFORE PERFORMING
ANY MAINTENANCE
(REFER TO MANUAL)
WARNING
A
B
C

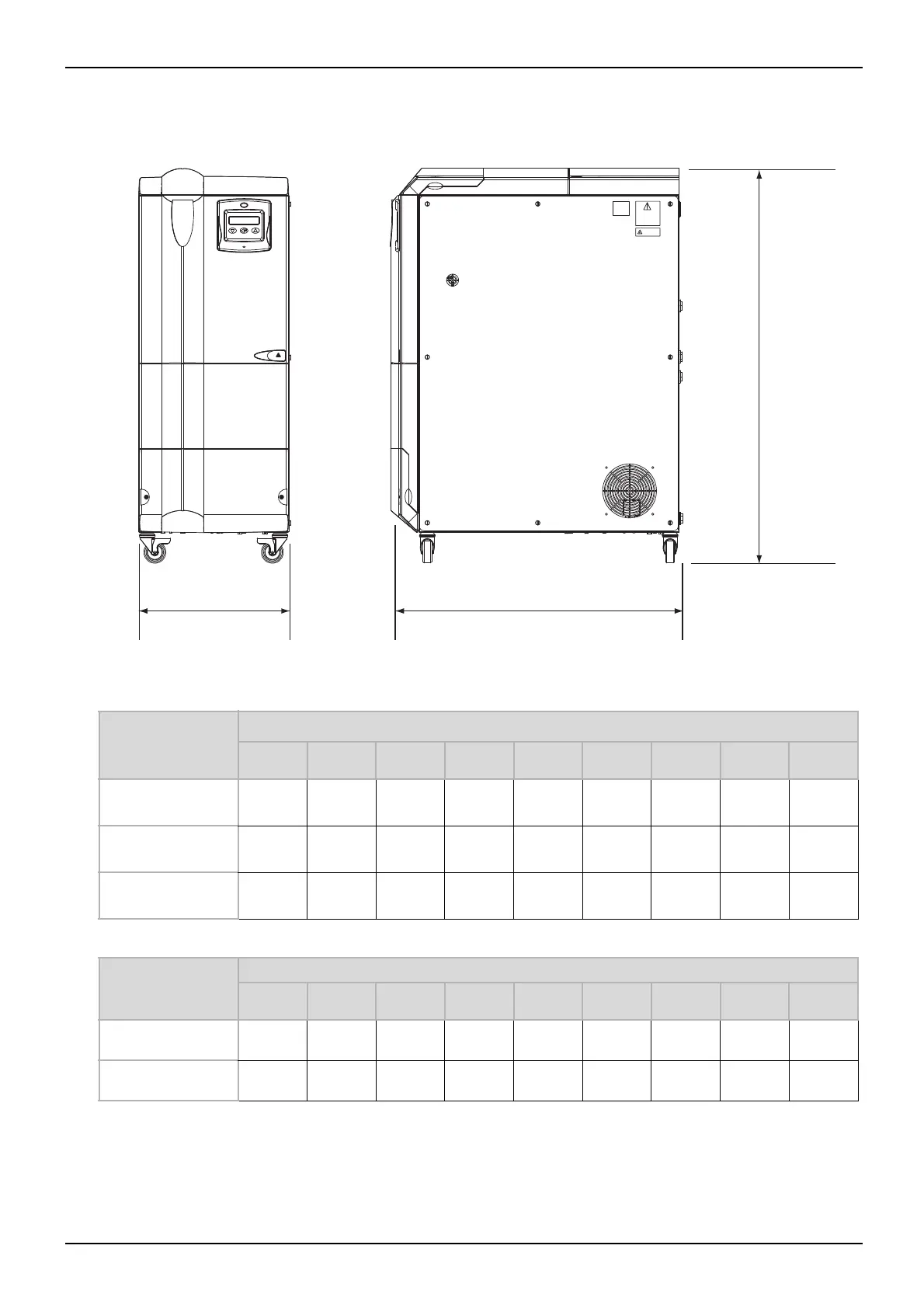

Dimensions :
mm
(ins)
Modèle
G1 G2 G3 G4 G5 G6 G7 G8 G9
A
345
(13.58)
345
(13.58)
345
(13.58)
345
(13.58)
345
(13.58)
345
(13.58)
345
(13.58)
345
(13.58)
345
(13.58)
B
413
(16.26)
663
(26.1)
663
(26.1)
663
(26.1)
413
(16.26)
413
(16.26)
663
(26.1)
413
(16.26)
413
(16.26)
C
846
(33.31)
894
(35.2)
894
(35.2)
894
(35.2)
846
(33.31)
846
(33.31)
894
(35.2)
846
(33.31)
846
(33.31)
Poids :
Kg
(lbs)
Modèle
G1 G2 G3 G4 G5 G6 G7 G8 G9
Avec
compresseur
52
(114.6)
77
(169.8)
77
(169.8)
77
(169.8)
51
(112.4)
54
(119)
80
(176.4)
50
(110.2)
50
(110.2)
Sans
compr
esseur
56
(123.5)
90
(198.4)
90
(198.4)
90
(198.4)
55
(121.3)
58
(127.9)
93
(205)
54
(119)
54
(119)
