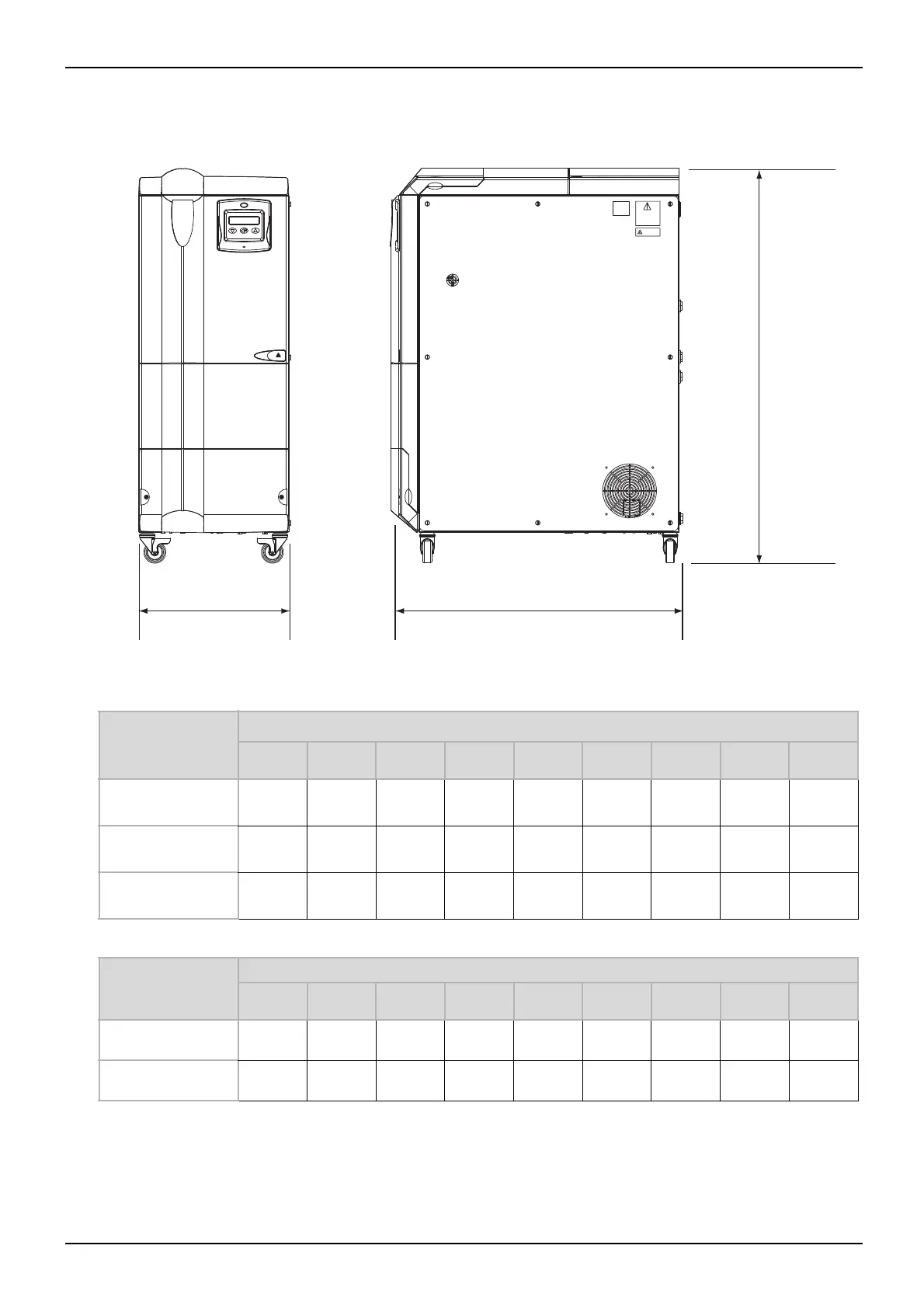

2.1.1 Dimensiones
DOMNICK HUNTER LTD.
DANGER
DISCONNECT THE
MAINS SUPPLY BEFORE
REMOVING THIS COVER
DISCONNECT THE
MAINS SUPPLY BEFORE
REMOVING THIS COVER
LIVE TERMINALS
ENCLOSED
WARNING
GENERATOR MUST BE SHUT
DOWN AND DEPRESSURISED
BEFORE PERFORMING
ANY MAINTENANCE
(REFER TO MANUAL)
WARNING
A
B
C
Dimensiones
mm
(pulgadas)
Modelo
G1 G2 G3 G4 G5 G6 G7 G8 G9
A
345
(13.58)
345
(13.58)
345
(13.58)
345
(13.58)
345
(13.58)
345
(13.58)
345
(13.58)
345
(13.58)
345
(13.58)
B
413
(16.26)
663
(26.1)
663
(26.1)
663
(26.1)
413
(16.26)
413
(16.26)
663
(26.1)
413
(16.26)
413
(16.26)
C
846
(33.31)
894
(35.2)
894
(35.2)
894
(35.2)
846
(33.31)
846
(33.31)
894
(35.2)
846
(33.31)
846
(33.31)
Peso
Kg
(libras)
Modelo
G1 G2 G3 G4 G5 G6 G7 G8 G9
Con
Compresor
52
(114.6)
77
(169.8)
77
(169.8)
77
(169.8)
51
(112.4)
54
(119)
80
(176.4)
50
(110.2)
50
(110.2)
Sin
Compresor
56
(123.5)
90
(198.4)
90
(198.4)
90
(198.4)
55
(121.3)
58
(127.9)
93
(205)
54
(119)
54
(119)
