18
GB/IE/NI/CY/MT

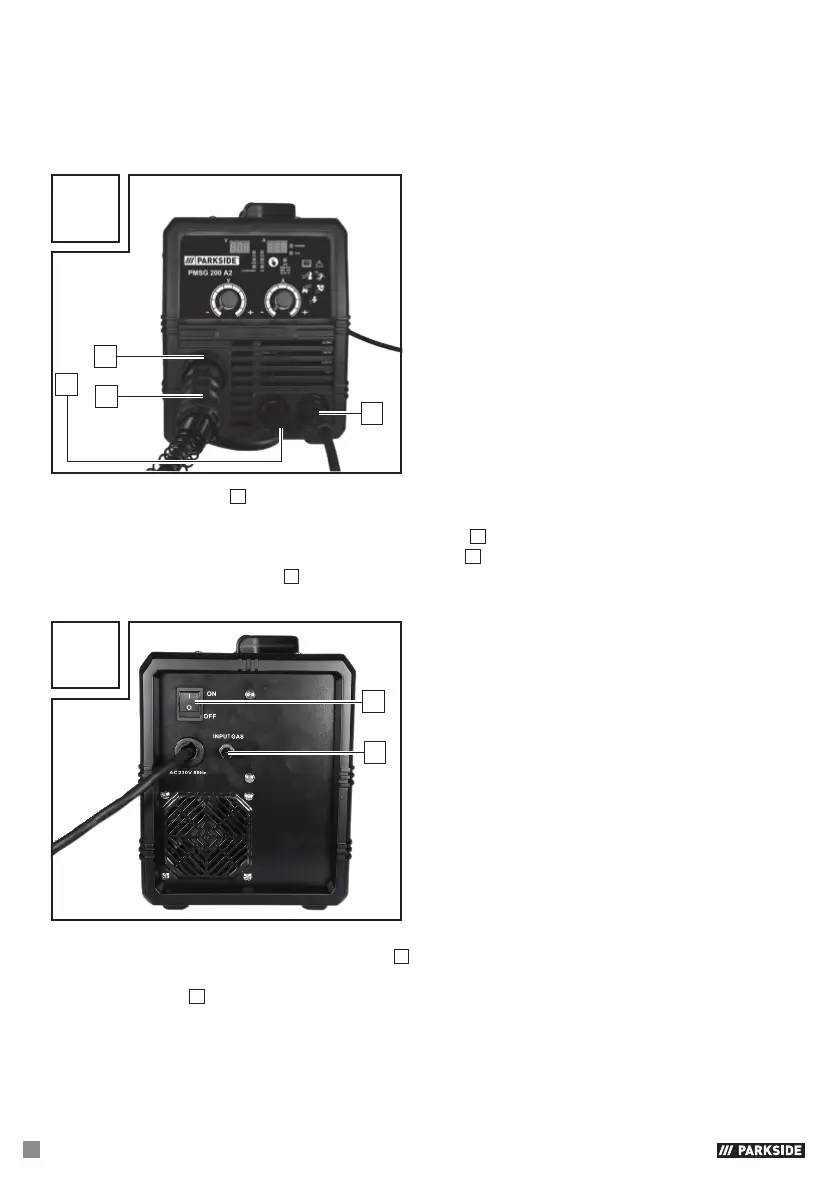

z Adaptation of device to solid welding wire with inert gas
The correct connections for solid wire welding when using inert gas are shown in Fig. S. When using the
aluminium solid wire delivered with the product, then you must use argon as the inert gas (not included
with the delivery).
S
10
4
38
First connect the plug
32
with the connector marked with the “+” (see Fig. S). To fix it in place, rotate
in a clockwise direction. If you are in any doubt, then please contact a professional.
Now connect the cable assembly with direct connection
10
to the appropriate connector (see Fig. S).
Fix the connection in place by tightening the fixing ring
38
in a clockwise direction.
Then connect the earth cable
4
with the corresponding connector, marked with the “-” (see Fig. S).
To fix the connection in place, rotate in a clockwise direction.
T
5
33
Pull the protective cap off the gas connection
33
.
Now connect the inert gas feed including the pressure reducer (not included with the delivery) to the
gas connection
33
(see Fig. T). Inert gas is required if you are not using flux-cored wire with
integrated solid inert gas. If necessary, observe the notes for your pressure reducer (not included
with the delivery). You can use the following formula as a guideline for adjusting the gas flow:
Wire diameter in mm x 10 = gas flow in l/min
For example, using 0.8 mm wire, will give a value of approx. 8 l/min.
32
