Pepperl+Fuchs IC-KP2-2HB17-2V1D User Manual

IC-KP2-2HB17-2V1D
Installation
2014-02
17

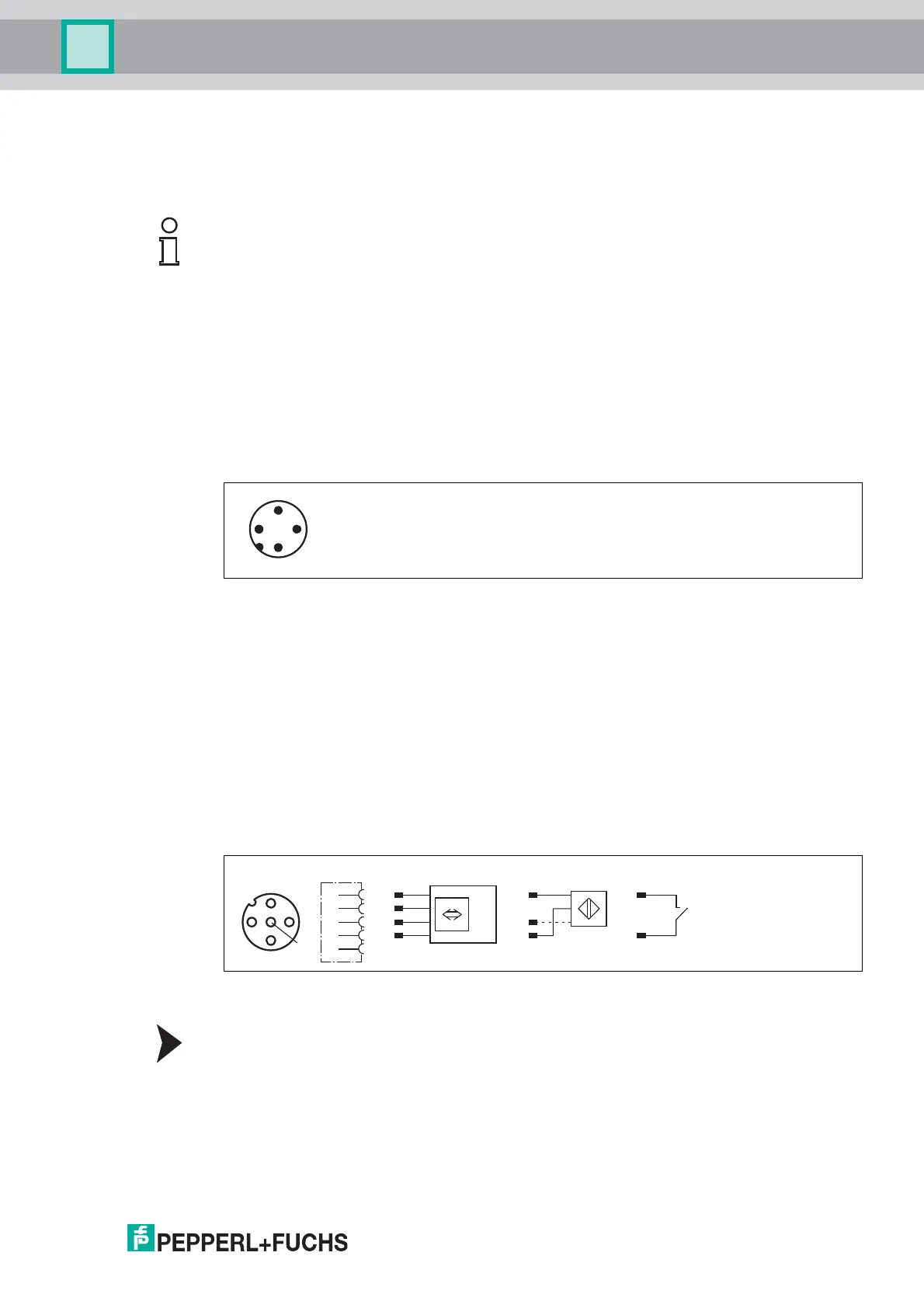

5.3 Installation
If you would like to the mount the IDENTControl Compact to a DIN rail, we recommend using
mounting accessory ICZ-MH05-SACB-8.
Set the rotary switch before mounting the IDENTControl Compact (see chapter 6.4).
5.4 Device connection
Electrical connection using plug connectors makes installation simple.
5.4.1 Power Supply
Connect the power supply using an M12 connector. A plug with the following pin assignment is
located on the enclosure:
Compatible connecting cable see chapter 4.2.2.
5.4.2 Read/Write Head and Trigger Sensors
You can connect a maximum of two read/write heads (125 kHz or 13.56 MHz) or read/write
heads with electromagnetic coupling (UHF with 868 MHz) to the IDENTControl Compact.
You can connect a trigger sensor, instead of a read/write head, to sockets 1 and 2. You can
assign the trigger sensor to a read/write head. The trigger sensor must be PNP.
For details of compatible read/write heads, see chapter 4.1.1 and of compatible connecting
cables, see chapter 4.2.1.
Connecting read/write heads
Connect the read/write heads or the trigger sensor with compatible connecting cable to the top
of the housing via the M12 connector.
Note!
The rotary switch used to select the device address is located on the underside of the
IDENTControl Compact. This rotary switch is no longer accessible once the IDENTControl
Compact is installed.
1 + 24 V
2 NC
3 GND
4 NC
4
13
2
trigger switch trigger sensor
read/write head
signal
socket at housing
2
13
4
5
+
A
-
+
-
B
1
2
3
4
5
