Commands

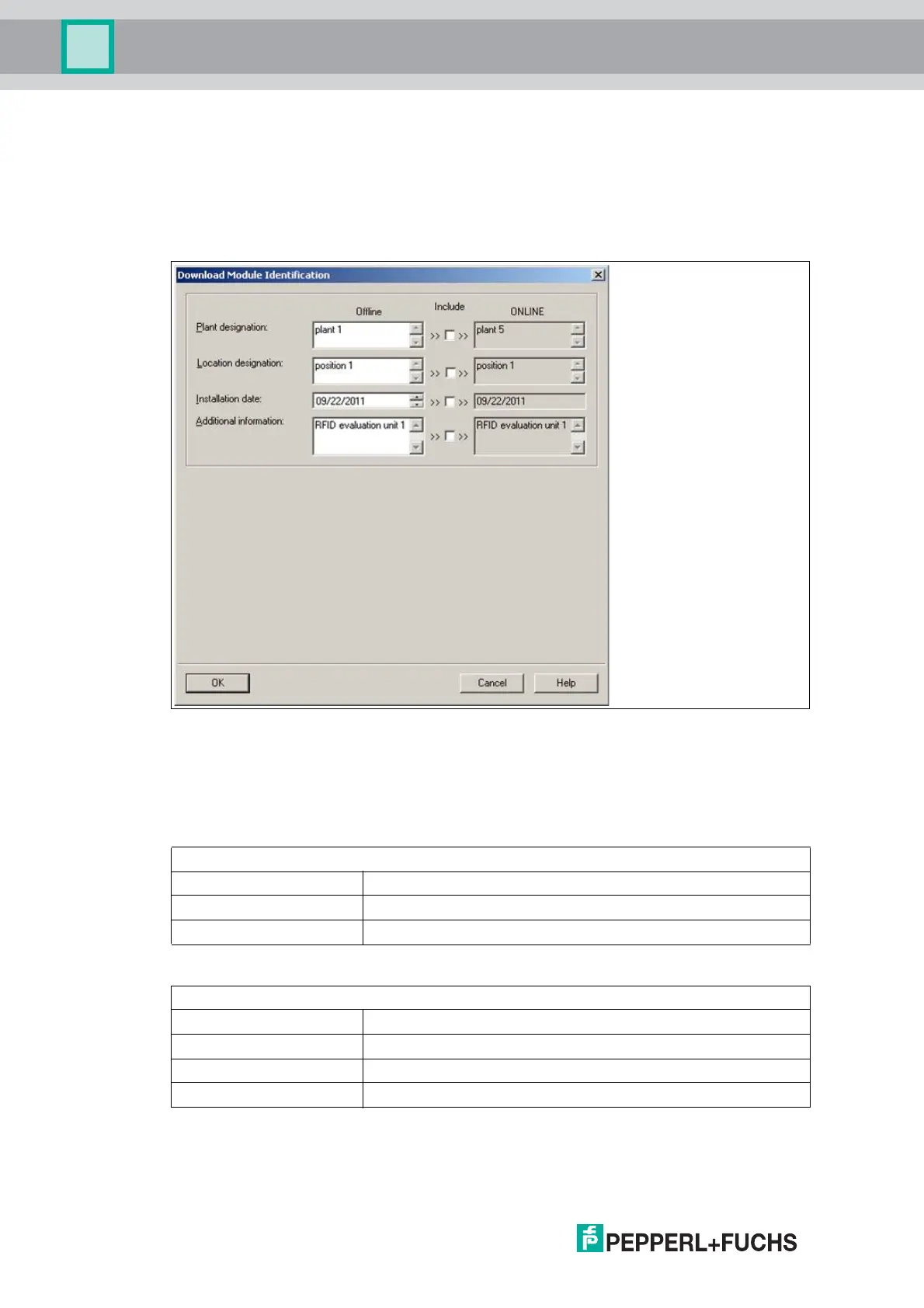

I&M Data
Figure 7.10
7.9.7 Command examples
Example: Define tag type
Command: Change tag type on channel 1 to IPC03
Confirmation
I&M data 1 = system ID
location ID
I&M data 2 = installation date
I&M data 3 = additional information
04:02:30:33 (hexadecimal format)
04 Command code CT (change tag)
02 Reserved/Channel (1), toggle bit 0b
30:33 tag type (IPC 03)
04:02:FF:01
04 Repeat command code CT (change tag)
02 Reserved/Channel (1), toggle bit 0b
FF Status FFh (processing command)
01 Reply counter
