IC-KP2-2HB17-2V1D
Commands
2014-02
27

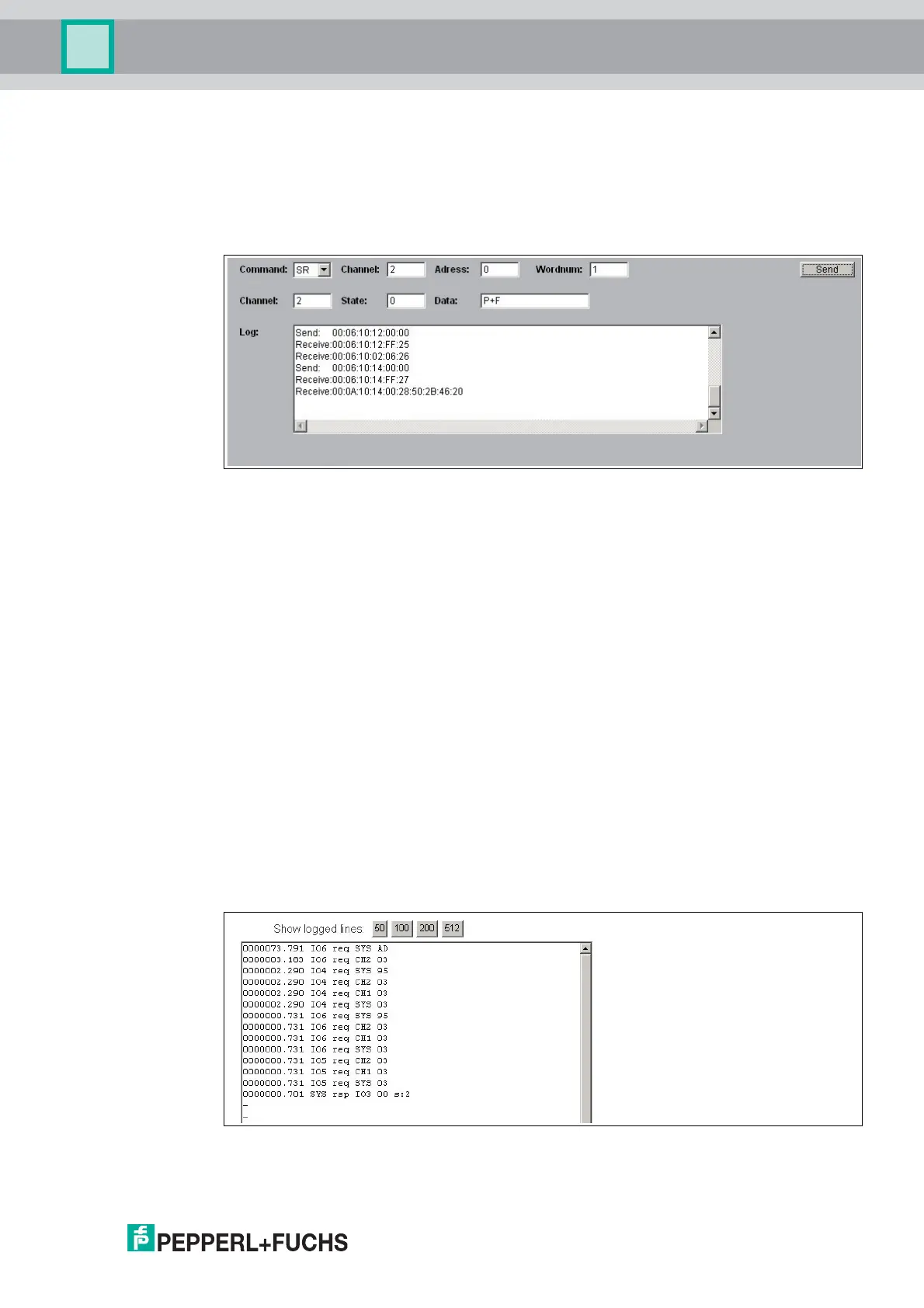

7.5.4 Sending commands via the website
For commissioning purposes, you can activate an applet in this window, which can be used to
execute identification commands that appear in the drop-down menu.
Communication with the identification system is only possible if there is no connection between
a controller and the device.
Command:
Drop-down menu with the selection of identification commands. More input boxes may be
available depending on the command. An entry is suggested for each command. For an
explanation of the commands .
Channel (in the second line):
Channel number of the response telegram.
State:
Status of the response telegram.
Data:
Data of the response telegram (if available).
Reply:
Received response telegrams.
7.5.5 Data logging
You can track commands activated in the IDENTControl Compact in the Data logging window.
Select between 50, 100, 200, or 512 displayed lines. The current time appears at the top of the
window.
