IC-KP2-2HB17-2V1D
Technical Specifications
2014-02
95
8 Technical Specifications

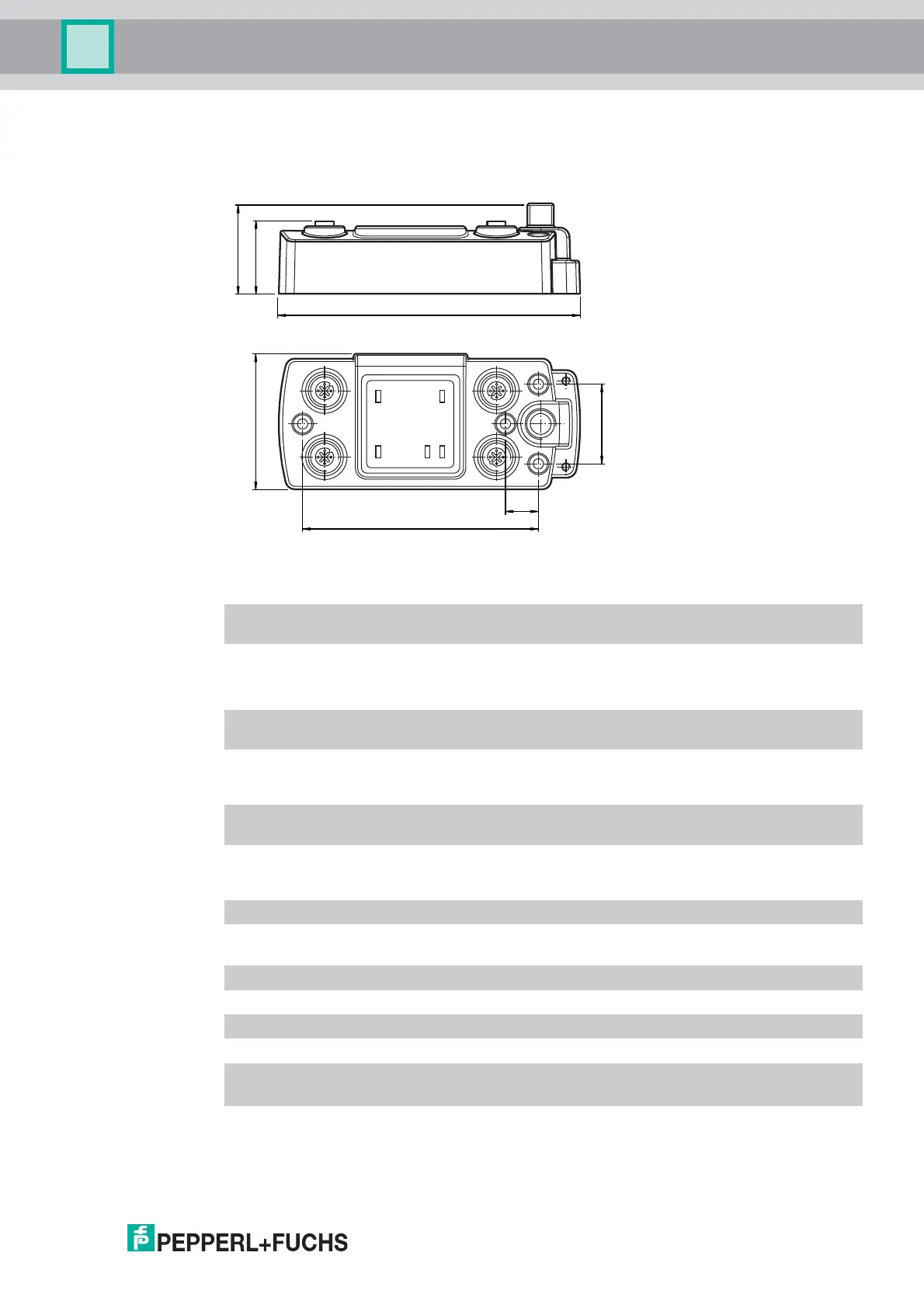

8.1 Dimensions
8.2 Technical Data
Ge n e r a l D a ta
Displays/Controls
Electrical Data
33
42
136.6
61.4
36
15
107
CH2CH2CH1CH1
Number of read/write
heads
Max. 2
alternatively 1 read/write head and 1 trigger sensor
UL file number E87056
Link/Traffic LED Green: connection to the network
Yellow: flashes at the same speed as the data being sent
LEDs 1, 2 Status display for read/write heads
Green: Command to read/write head active
Yellow: approx. 1 second if command is executed successfully
LEDs CH1, CH2 Green: reader identified
Red: configuration error
PWR/ERR LED Green: power on
Yellow: system starting
Red: PROFINET bus error
Rotary switch Address setting
Rated operational voltage 20–30 V DC, PELV
Ripple 10 % at 30 V DC
Current consumption 4 A incl. read/write heads
Power consumption 3.5 W without read/write heads
Galvanic isolation Basic insulation in accordance with DIN EN 50178, rated
insulation voltage 50 V
eff
