Accessories . 77

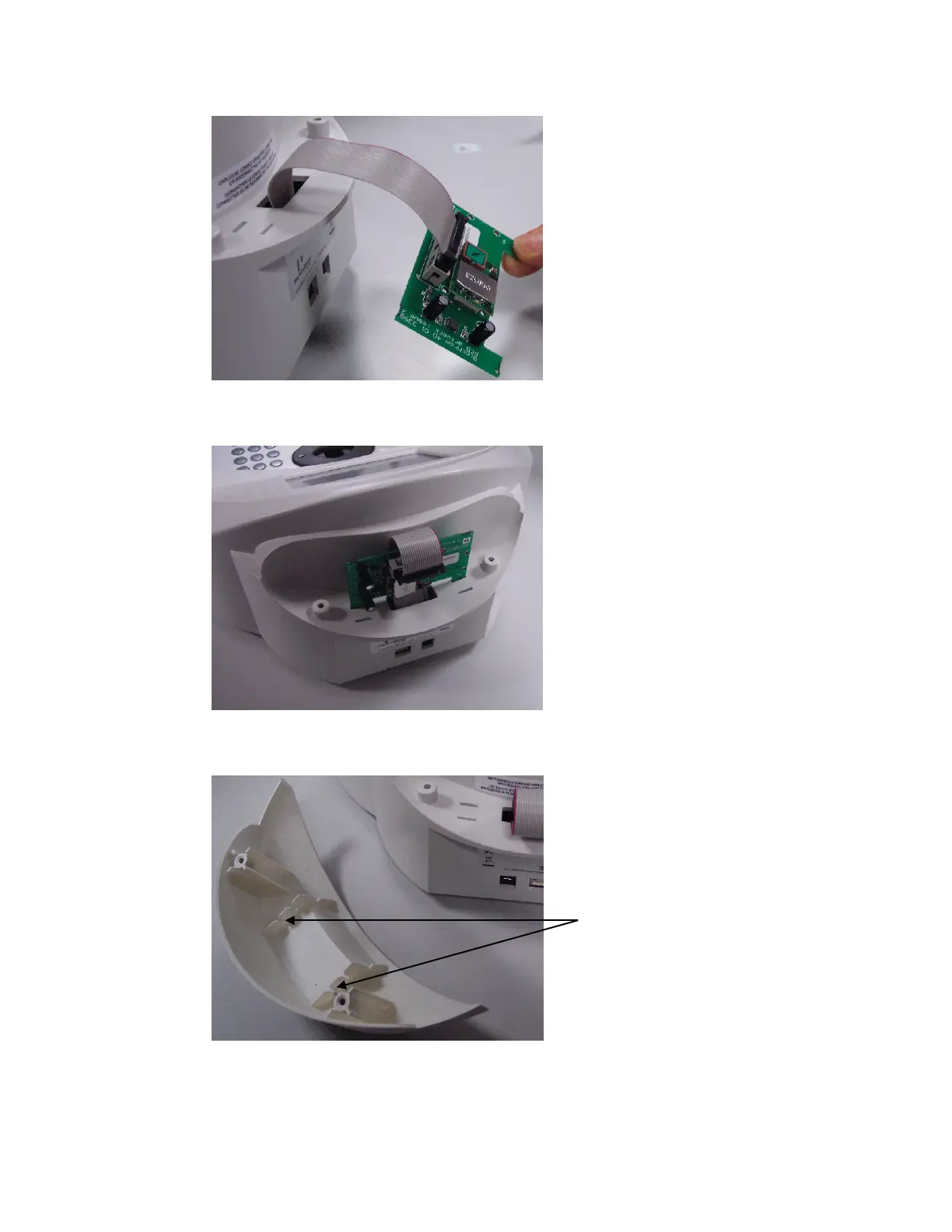

5. Plug the accessory cable into the Bluetooth module.
6. Plug the two lugs on the Bluetooth module into the innermost slots in the base of the
case.
7. Lower the accessory cover vertically downwards onto the instrument, engaging the PCB
in the innermost slots in the accessory cover.
8. Invert the instrument and replace the two cap head screws.
9. Connect the power cable.
Bluetooth accessory slots
