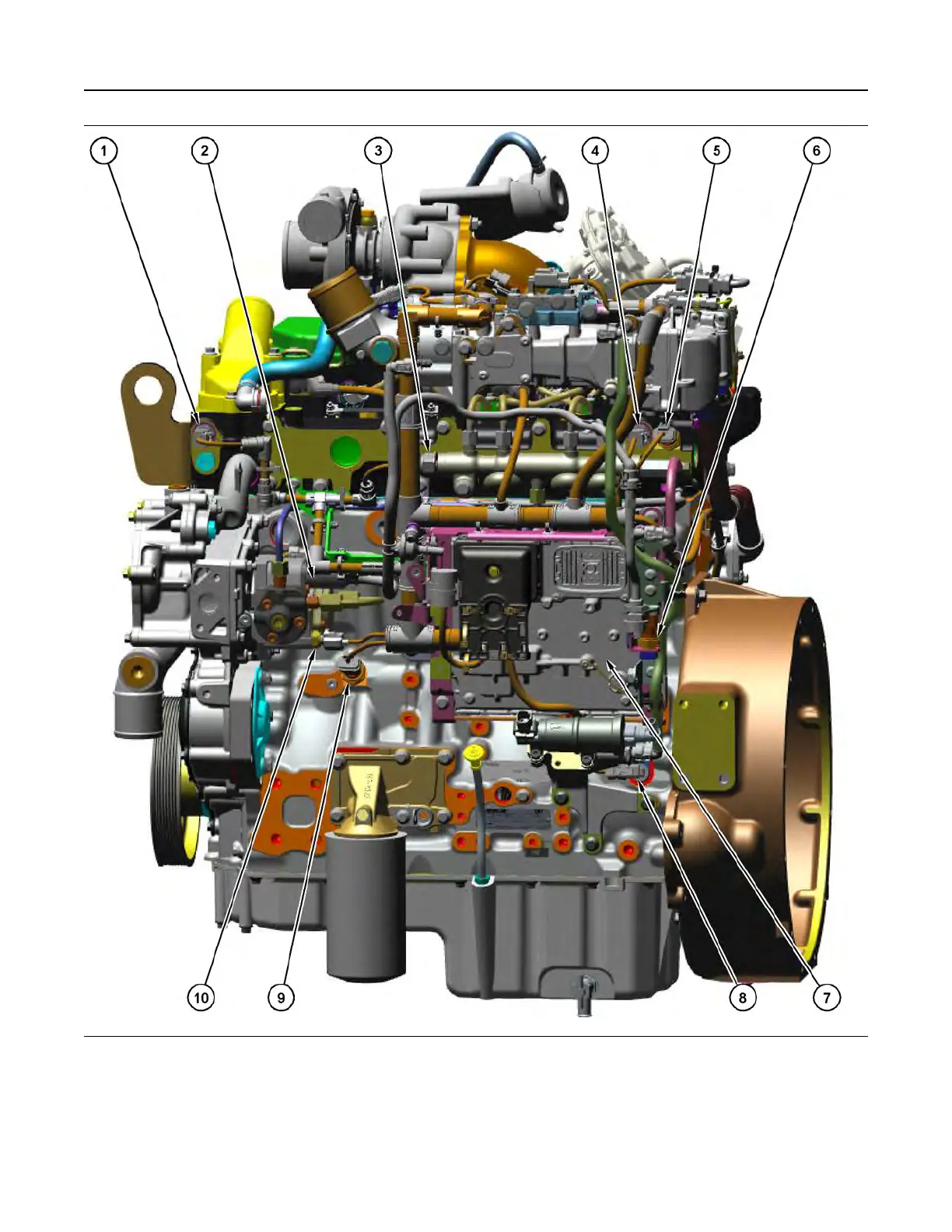

Illustration 6 g03695037
Sensor locations on the left side of the engine
(1) Coolant temperature sensor
(2) Solenoid for the high-pressure fuel pump
(3) Fuel rail pressure sensor
(4) Intake manifold air temperature sensor
(5) Intake manifold pressure sensor
(6) Barometric pressure sensor
(7) Electronic Control Module (ECM)
(8) Primary speed/timing sensor
(9) Oil pressure sensor
(10) Fuel temperature sensor
UENR4469-36 17
Electronic System Overview
