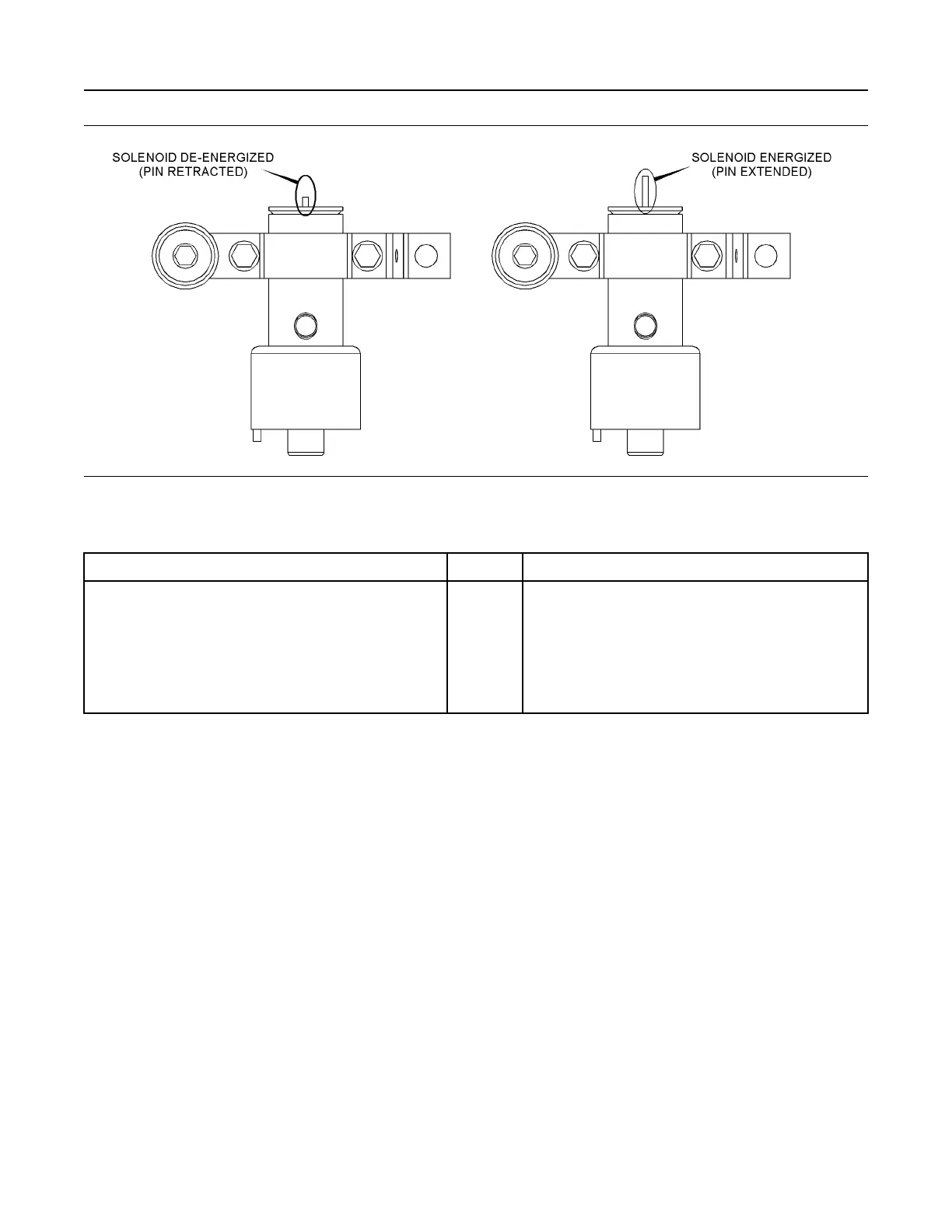

Illustration 111 g03152796
Ether solenoid activation pin
Table 180
Troubleshooting Test Steps
Values Results
4. Verify the Repair
A. Activate the Ether Injection Override.
B. Verify that the plunger moved up when the override was
active.
Plunger
movement
Result: The plunger moved up when the override was active.
Install the ether bottle and return the unit to service.
If the procedure did not correct the issue, contact the Dealer
Solutions Network (DSN).
i06165010
Fuel Transfer Pump - Test
Use this procedure to troubleshoot the relay for the
Electric Fuel Lift Pump (EFLP). Use this procedure if
there is a suspected electrical fault with the EFLP.
This procedure covers the following diagnostic
codes:
UENR4469-36 323
