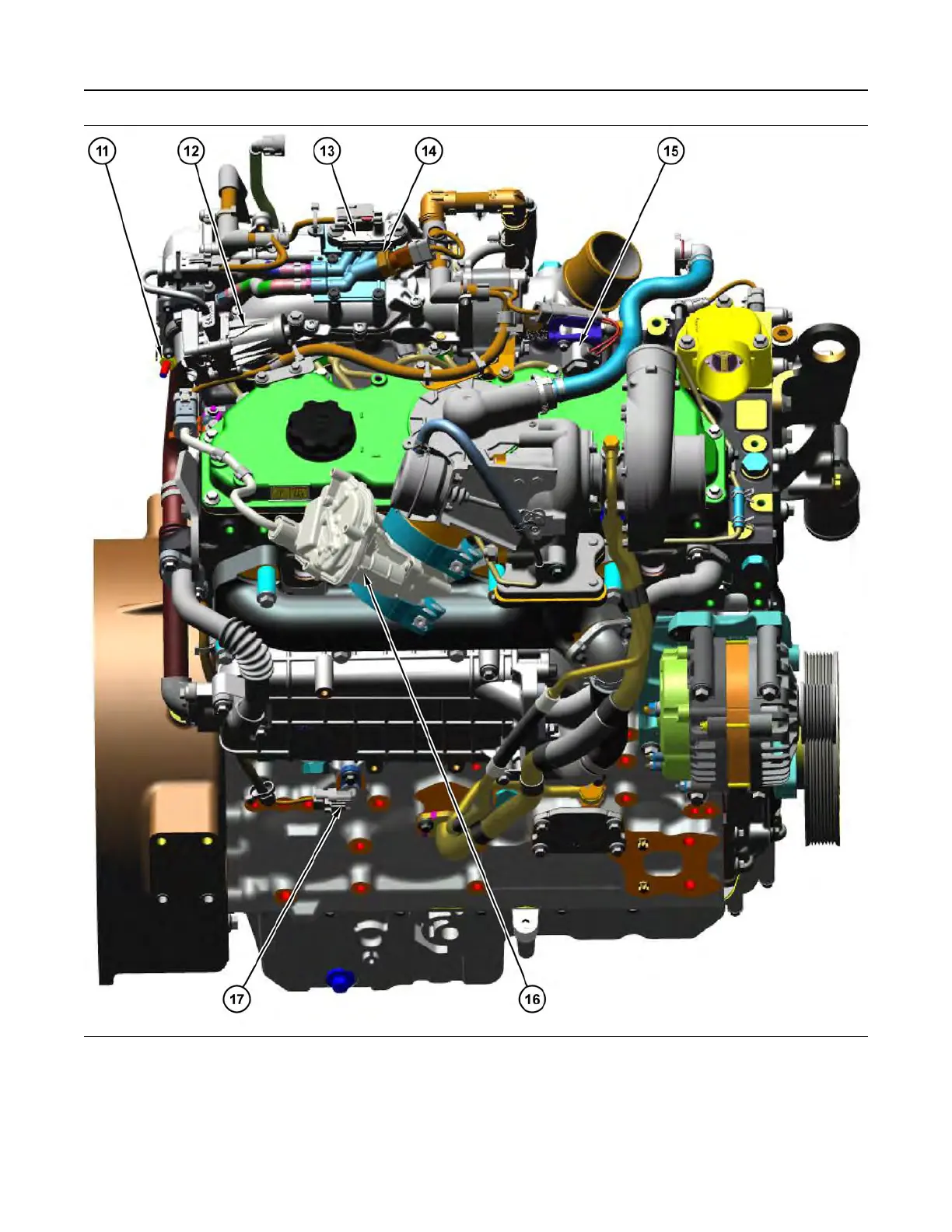

Illustration 8 g03695174
Sensor locations on the right side and top of the engine
(11) NRS inlet temperature sensor
(12) NRS valve including a position sensor
(13) NOx Reduction System (NRS)
differential pressure sensor
(14) NRS inlet pressure sensor
(15) Wastegate regulator
(16) Exhaust Back Pressure Regulator
(EBPR)
(17) Secondary speed/timing sensor
UENR4469-36 19
Electronic System Overview
