Illustration 61 g03700009

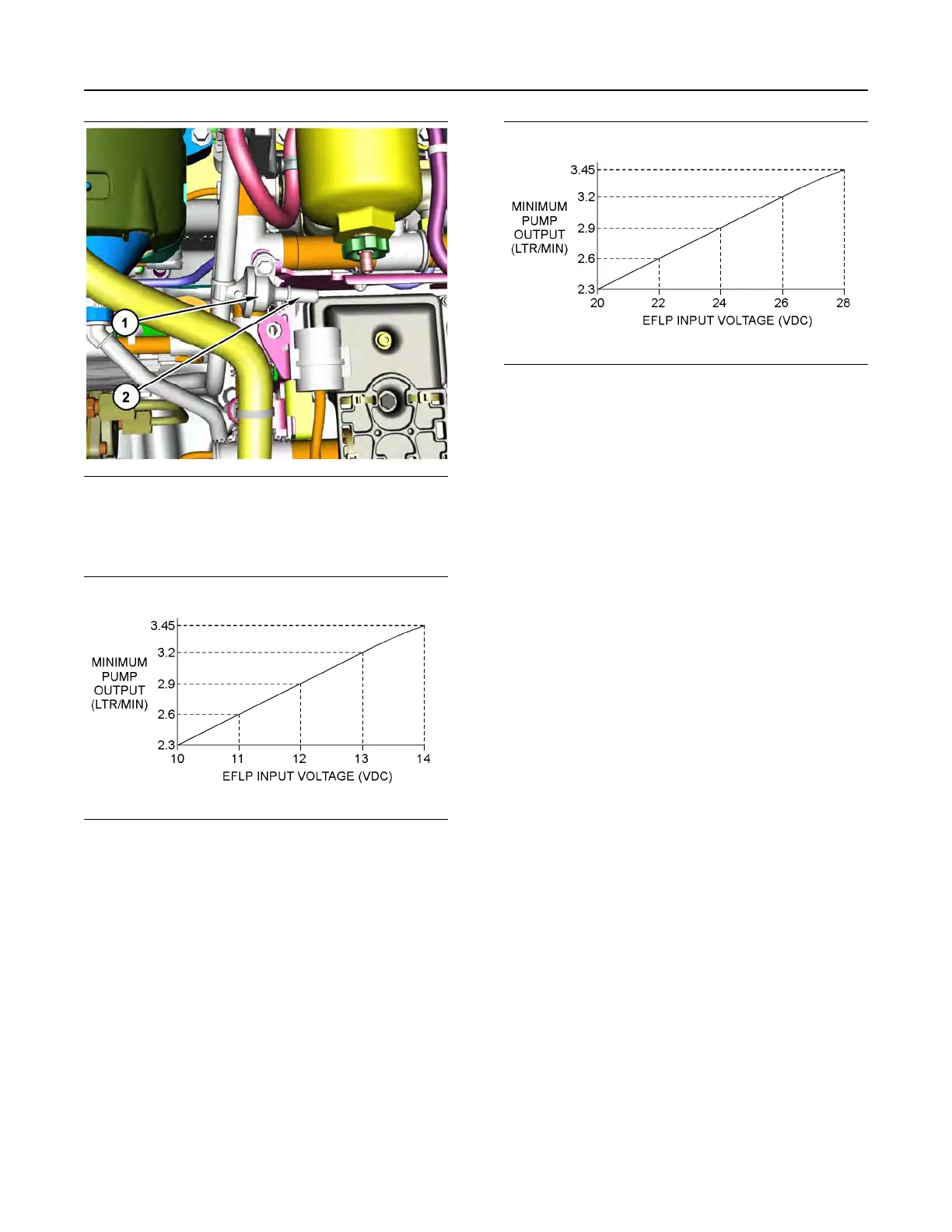

Transfer Pump Inlet Regulator (TPIR) components
(1) Transfer Pump Inlet Regulator (TPIR)
(2) TPIR return port
Illustration 62 g02485896
Minimum TPIR flow rate in a 12 V system
Illustration 63 g02485897
Minimum TPIR flow rate in a 24 V system
UENR4469-36 195
Symptom Troubleshooting
