The Electronic Control Module (ECM) uses
connectors that have 86 terminals to interface to the
wiring harness.

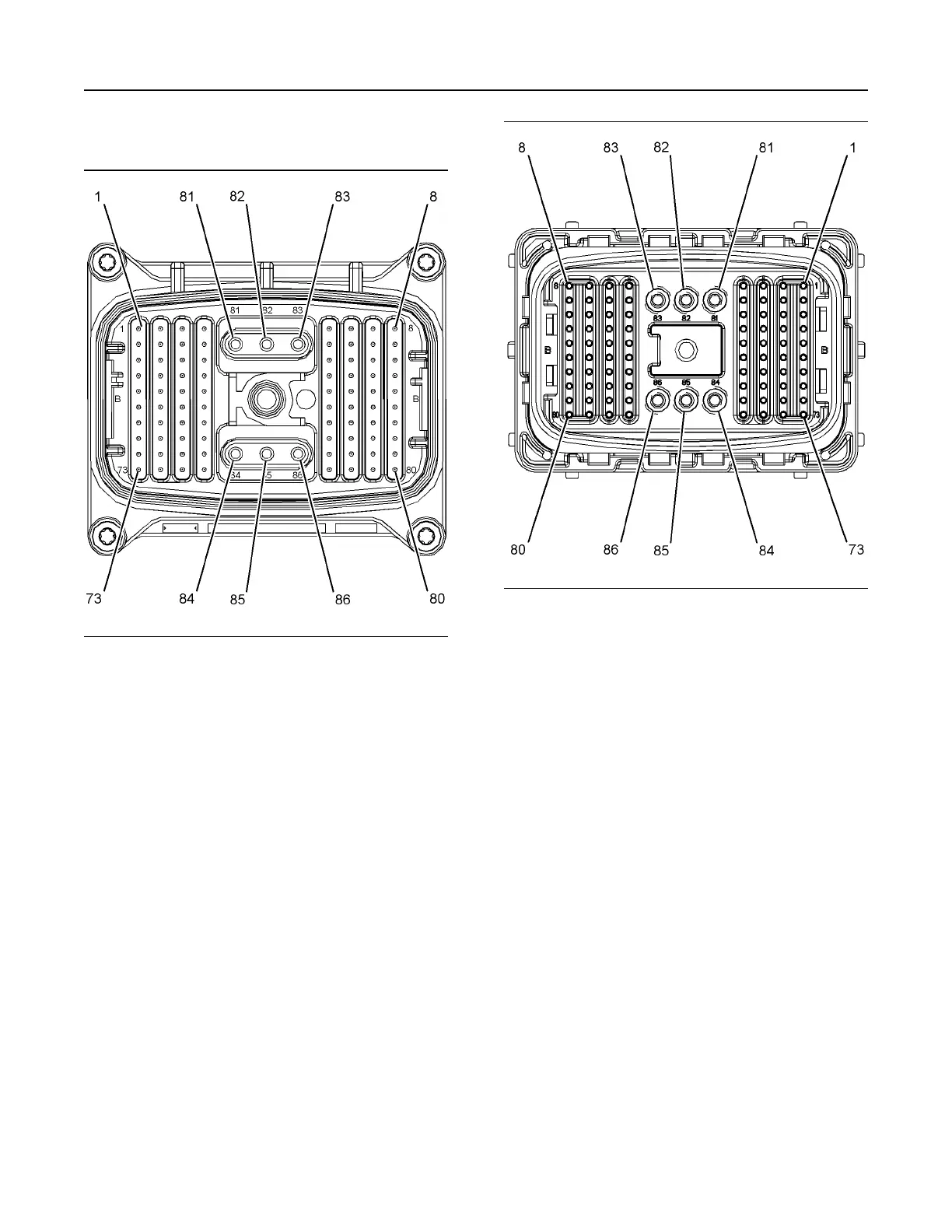

Illustration 13 g03068976
Layout of the ECM connector pins
Illustration 14 g03069016
Layout of the harness connector pins
The pins on the harness connectors are not
serviceable. If a pin or the connector is damaged, the
harness must be replaced.
