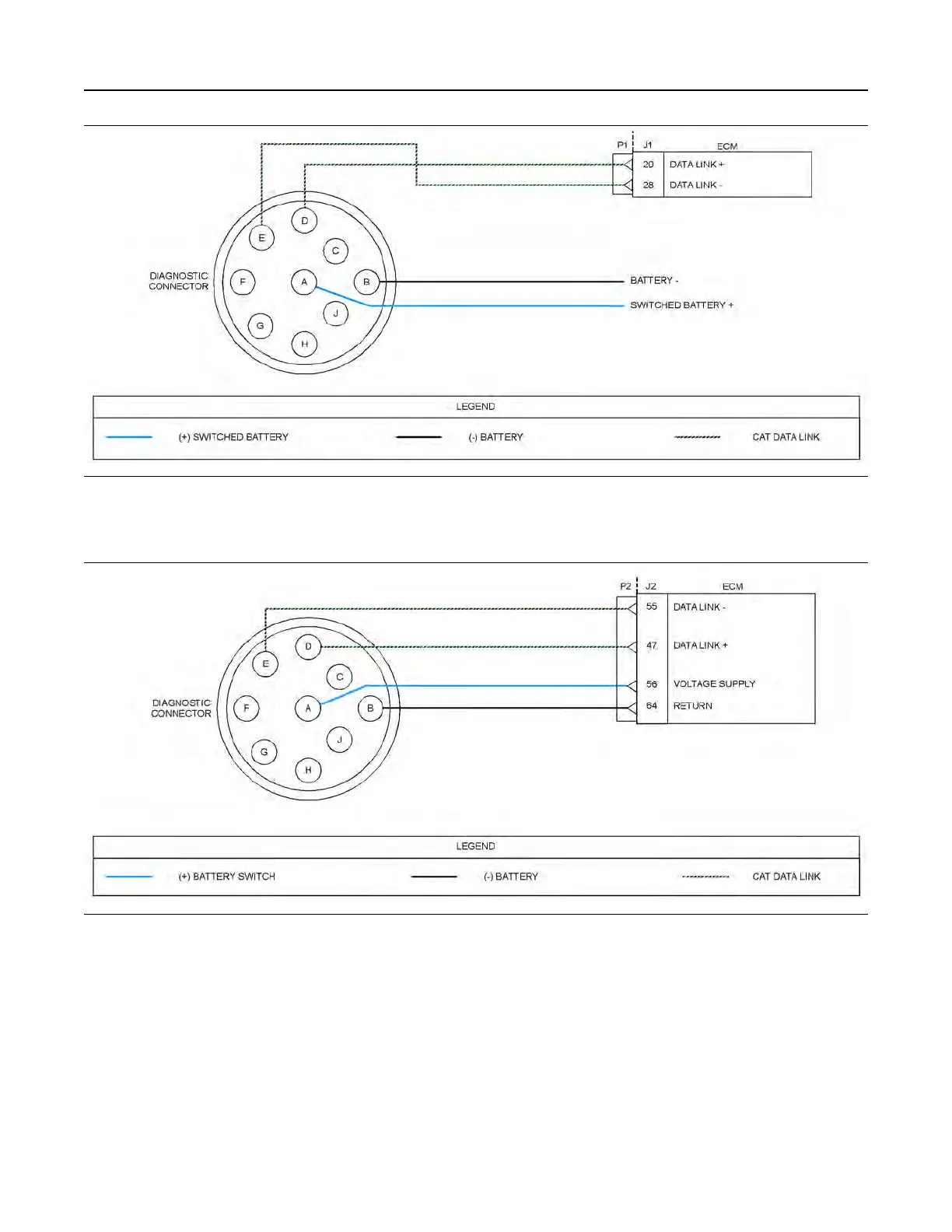

Illustration 95 g03805325
Schematic of the diagnostic connector and the data link connector for a diagnostic connector that is mounted off
engine
Illustration 96 g03705767
Schematic of the diagnostic connector and the data link connector for an engine mounted diagnostic connector
286 UENR4469-36
Circuit Tests
