Perkins 1204-E44TA

To Next Page

To Previous Page

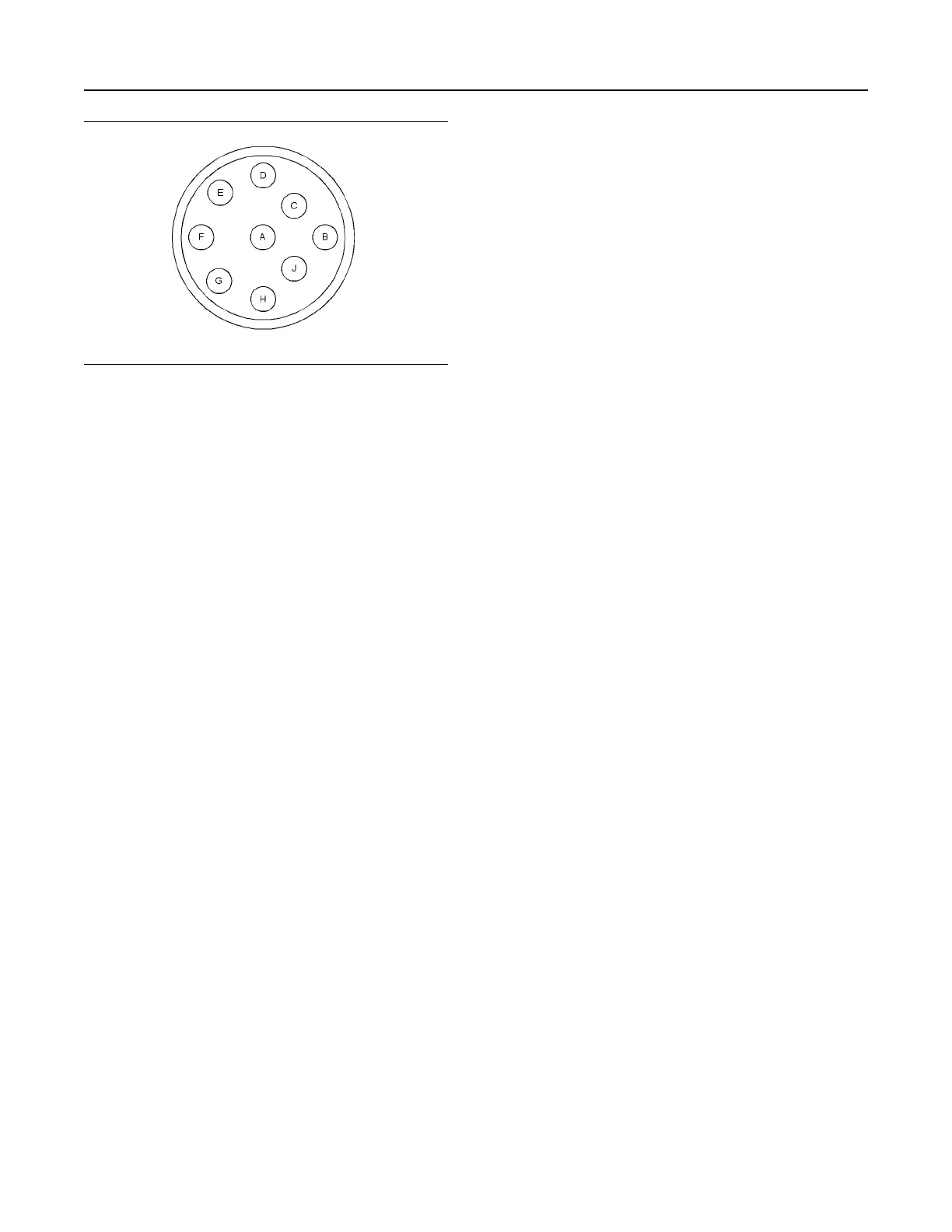

Illustration 97 g03705906

Typical view of the diagnostic connector from the wire

side

(A) Switched battery +

(B) Battery ground (GND)

(D) Data link +

(E) Data link -

288 UENR4469-36

Circuit Tests
