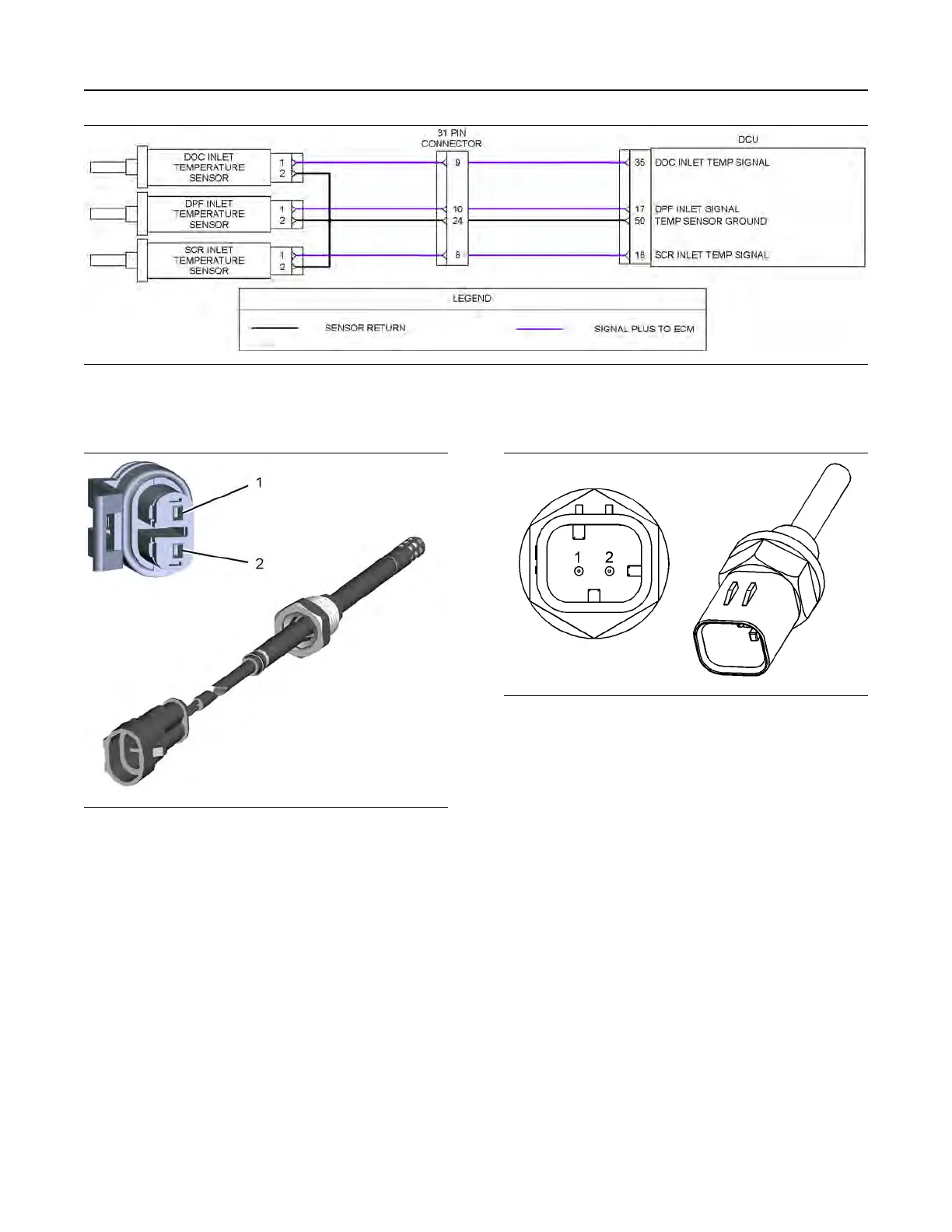

Illustration 136 g03713995
Schematic for passive engine temperature sensors on the DCU connector
Not all connectors are shown. Refer to the appropriate Electrical Schematic.
Illustration 137 g03714041
Typical view of a CEM temperature sensor and
mating connector
(1) Signal
(2) Ground
Illustration 138 g01170313
Typical view of an engine temperature sensor
(1) Signal
(2) Ground
396 UENR4469-36
Circuit Tests
