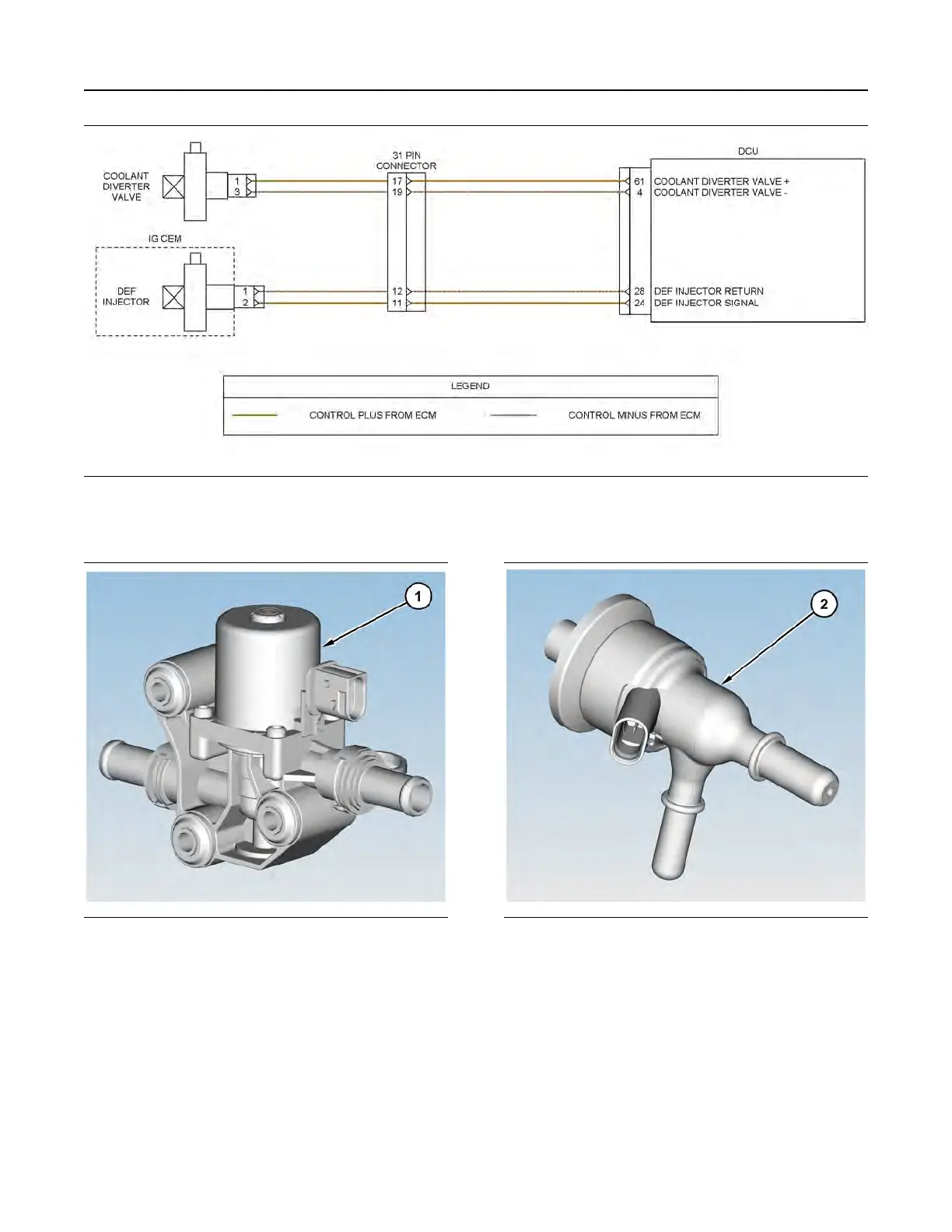

Illustration 144 g03733173
Schematic for the solenoid valves
Not all connectors are shown. Refer to the appropriate Electrical Schematic.
Illustration 145 g03714645
Coolant diverter valve
Illustration 146 g03714646
DEF injector
UENR4469-36 405
Circuit Tests
