Perkins 1204-E44TA

To Next Page

To Previous Page

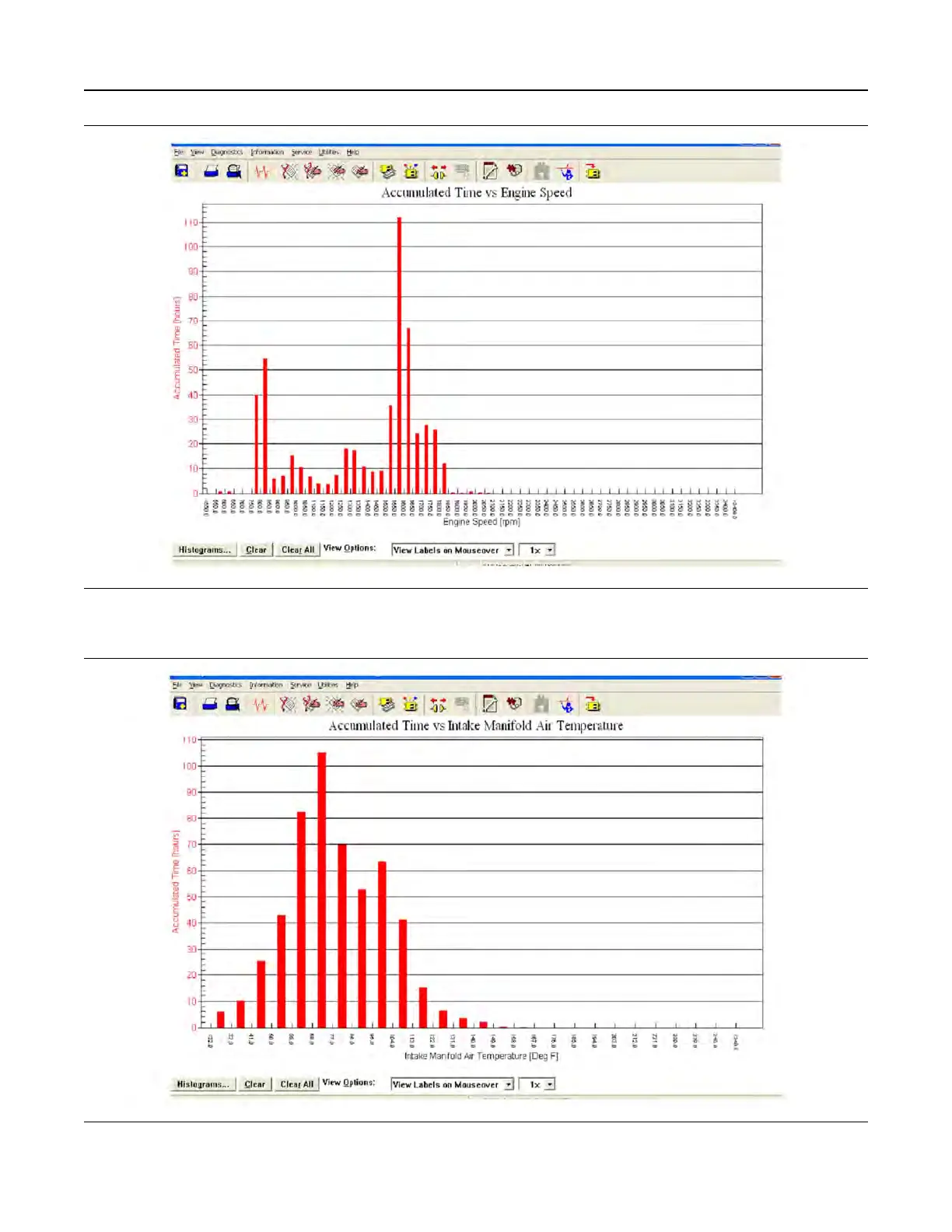

Illustration 170 g03826880

The amount of engine hours operated at indicated engine speed.

Illustration 171 g03826881

The amount of engine hours operated at indicated intake manifold air temperature.

472 UENR4469-36
