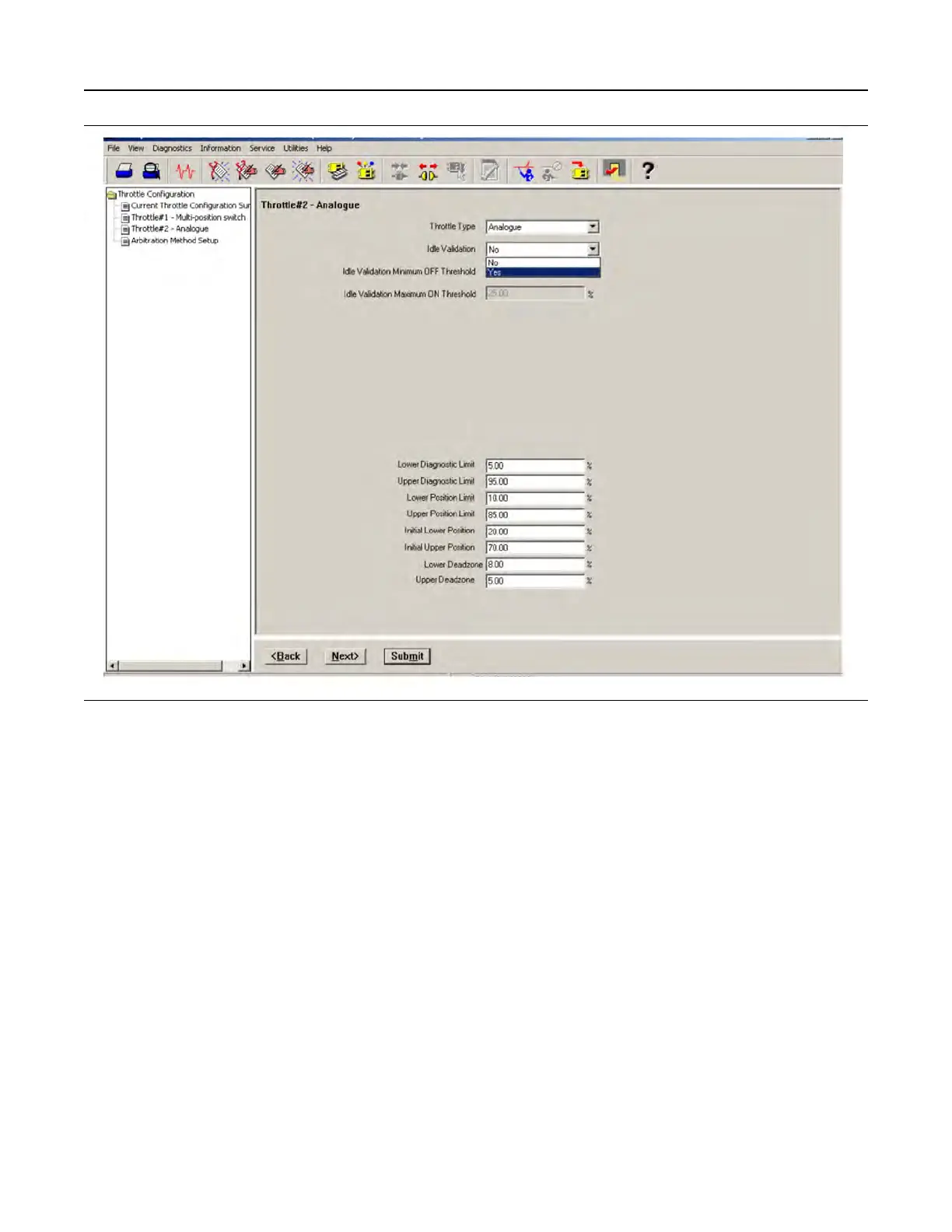

Illustration 180 g03826901
Screen 4
Engine Operating Mode
Configuration
The engine operating mode configuration feature
allows the configuration of up to four separate modes
that can be selected via two switch inputs.
If only one mode is required, no switch inputs are
required and Mode 1 will always be used.
If two modes are required, one switch input can be
selected to toggle between Mode 1 and Mode 2. If
three or four modes are required, two switch inputs
will be required. The numbers of switches are
selected in the drop-down box at the top of the
screen.
482 UENR4469-36
