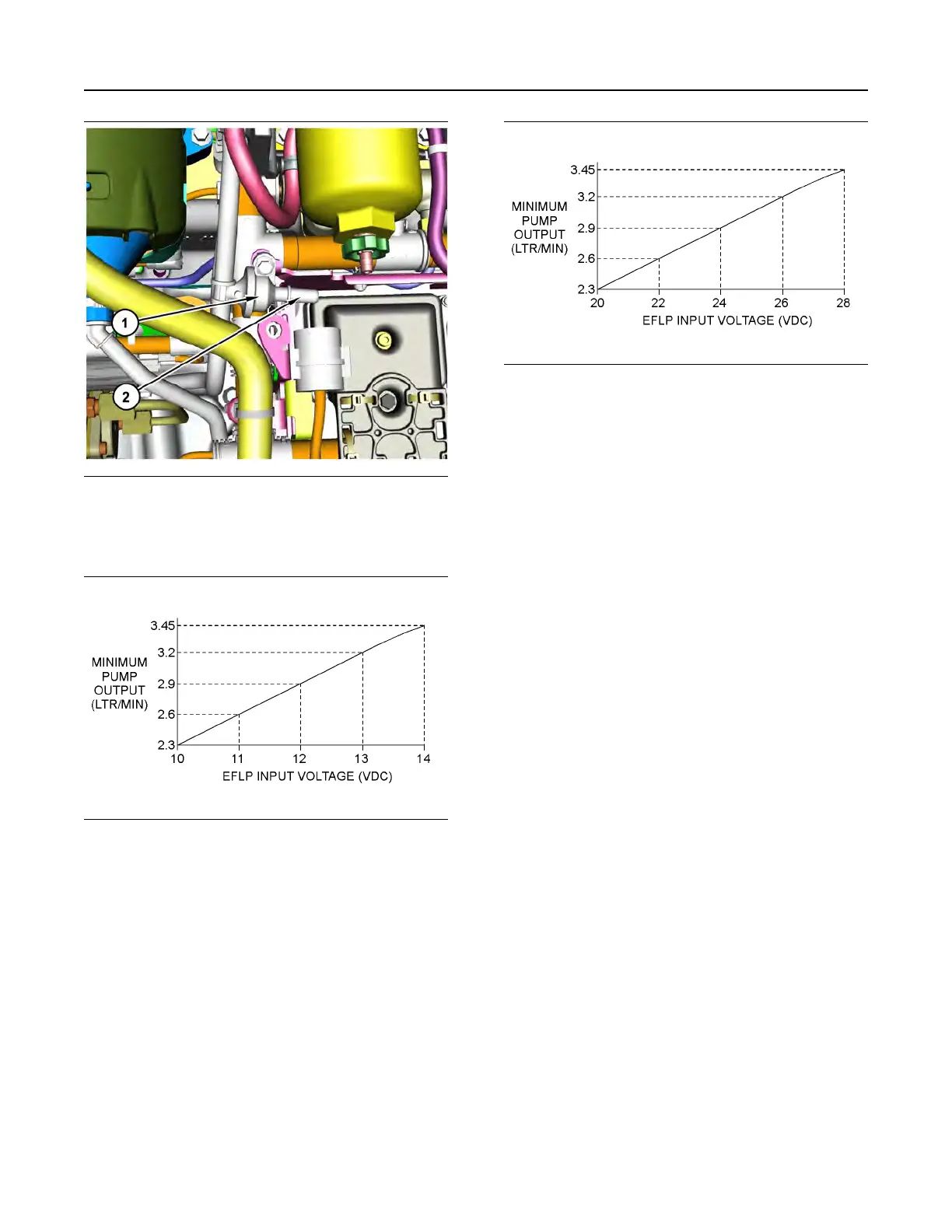

Illustration 26 g03700009
Transfer Pump Inlet Regulator (TPIR) components
(1) Transfer Pump Inlet Regulator (TPIR)
(2) TPIR return port
Illustration 27 g02485896
Minimum TPIR flow rate in a 12 VDC system
Illustration 28 g02485897
Minimum TPIR flow rate in a 24 VDC system
UENR4469-36 69
