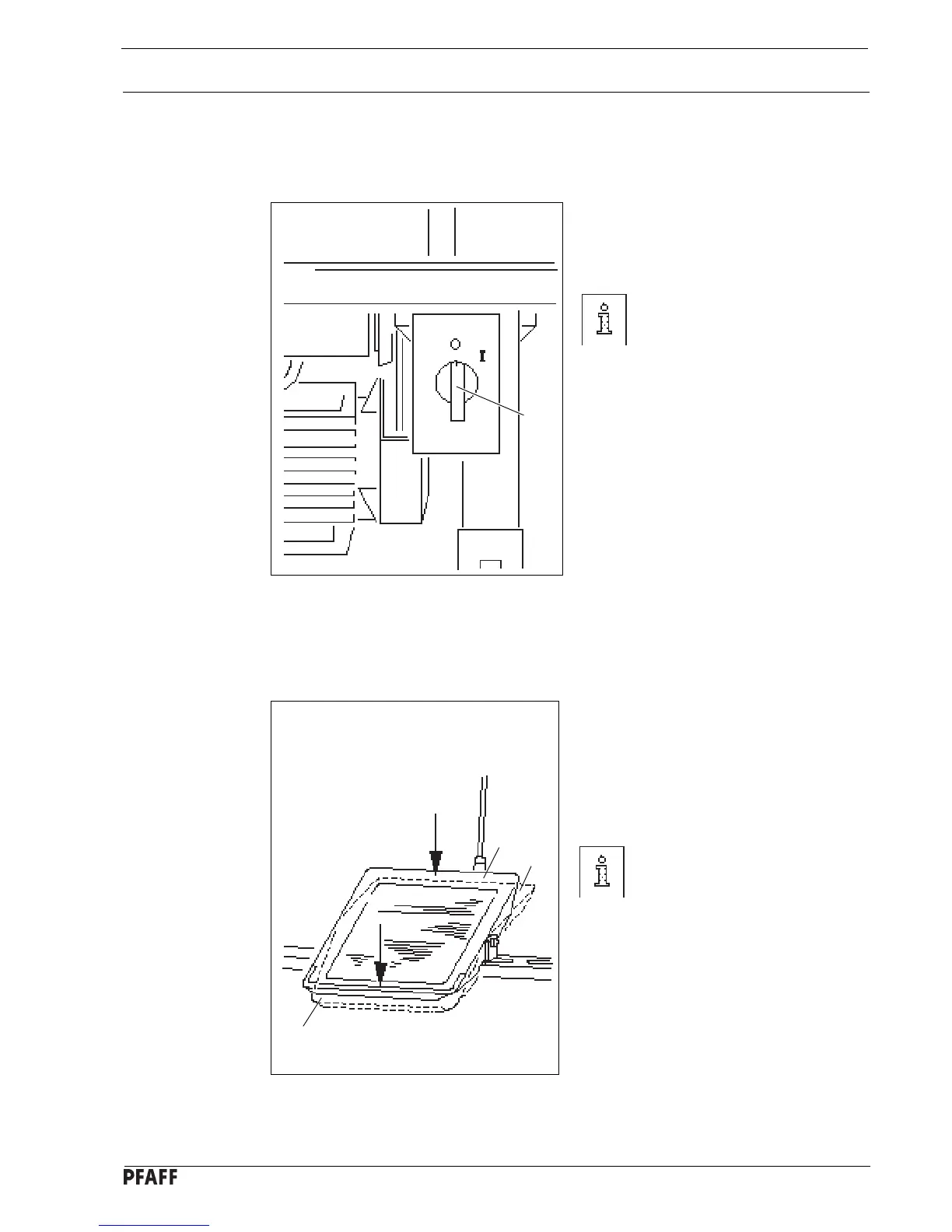

Fig. 7 - 01
7 Controls
7.01 On/off switch
● Turn the machine on and off by turning
the on/off switch 1.
The switch in the illustration
is fitted to machines with Quick
motors. When other motors are
used, other switches may be
fitted.
1
7.02 Pedal
(on machines without automatic backtacking mechanism
and presser foot lift -911/97)
0 = Neutral position
+1 = Sew
-1 = Trim thread (on machines with thread
trimmer -900/56)
For other pedal functions see the
motor instruction manual.
Fig. 7 - 02
0
+1
