Adjustment
11 - 9
11
.04.08
Synchronizing the roller presser and feed dog
(only on machines with subcl. -4/01)
Requirement
The feed strokes of the roller presser and the feed dog must be equal.

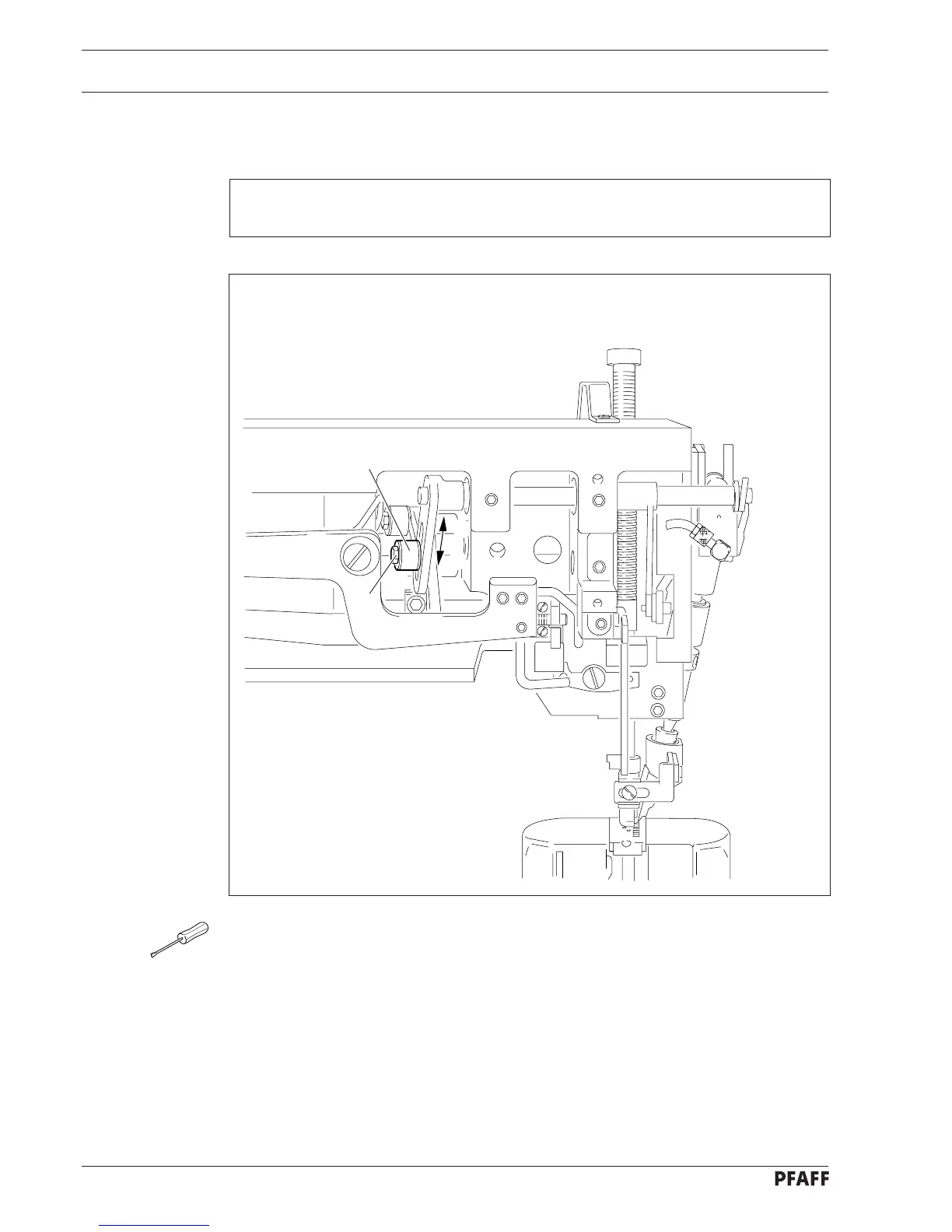

Fig. 11 - 08
●
Adjust lever
1
(screw
2
) in accordance with the
requirement
.
+
-
2
1
43
45
Table of Contents
Table of Contents
3
Contents
4
Safety
6
General Notes on Safety
6
Safety Symbols
7
Important Notes for the User
7
Operating and Technical Staff
8
Operating Staff
8
Technical Staff
8
Danger Warnings
9
Proper Use
10
Specifications
11
Pfaff 1293
11
Pfaff 294 / Pfaff 1294
12
Models and Subclasses
13
Disposal of Machine
14
Transportation, Packing and Storage
15
Transportation to Customer's Premises
15
Transportation Inside Customer's Premises
15
Disposal of Packing Materials
15
Storage
15
Explanation of Symbols
16
Controls
17
On/Off Switch
17
Pedal (on Machines Without Automatic Backtacking Mechanism and Presser Foot Lift -911/97)
17
Pedal (on Machines with Automatic Backtacking Mechanism and Presser Foot Lift -911/97)
18
Knee Lever (on Machines Without Automatic Backtacking Mechanism and Presser Foot Lift -911/97)
19
Key on the Machine Head (on Machines with Automatic Backtacking Mechanism and Presser Foot Lift -911/97)
19
Lever for Lifting the Roller Presser
20
Feed Regulator and Reverse Sewing Lever
20
Feed Regulator (on Machines with Automatic Backtacking Mechanism and Presser Foot Lift -911/97)
21
Adjusting the Table-Top Height
22
Installation and Commissioning
22
Installation
22
Adjusting the V-Belt Tension
23
Fitting the Upper V-Belt Guard
23
Fitting the Lower V-Belt Guard
24
Fitting the Synchonizer
24
Fitting the Reel Stand
25
Commissioning
25
Switching the Machine on / off
25
Setting up
26
Inserting the Needle in the PFAFF 1293
26
Inserting the Needle in the PFAFF 294 and PFAFF 1294
27
Winding the Bobbin Thread, Adjusting the Thread Tension
28
Removing /Inserting the Bobbin Case
29
Threading the Bobbin Case / Adjusting the Thread Tension
29
Threading the Needle Thread / Adjusting the Needle Thread Tension (PFAFF 1293)
30
Threading the Needle Thread / Adjusting the Needle Thread Tension (PFAFF 294 and PFAFF 1294)
31
Care and Maintenance
32
Servicing and Maintenance Intervals
32
Cleaning the Hook Compartment and the Hook
32
General Lubrication
32
Lubricating the Hook
34
Checking / Adjusting the Air Pressure
35
Emptying/Cleaning the Water Container of the Air Filter/Regulator
35
Adjustment
36
Notes of Adjusting
36
Tools, Gauges and Other Accessories
36
Abbreviations
36
Adjusting the Basic Machine
37
Positioning the Feed Dog
37
Height of the Feed Dog
38
Pre-Adjusting the Needle Height
39
Centering the Needle in the Needle Hole
40
Driving Motion of the Feed Dog
41
Lifting Motion of the Feed Dog
42
Basic Position of the Roller Presser Drive (Only on Machines with Subcl. -4/01)
43
Synchronizing the Roller Presser and Feed Dog
44
(Only on Machines with Subcl. -4/01)
44
Releasing the Roller Presser for Reverse Sewing (Only on Machines with Subcl. -4/01)
45
Hook-To-Needle Clearance, Needle Rise, Needle Height and Needle Guard
46
Bobbin-Case Opener
48
Safety Coupling
49
Clearance between Roller Presser and Needle Plate
50
Pressure of Roller Presser
51
Needle Thread Tension Release
52
Thread Check Spring (PFAFF 1293 and on Machines Without -900/56)
53
Thread Check Spring (on PFAFF 294 and PFAFF 1294 with -900/56)
54
Bobbin Winder
55
Adjusting the Presser Bar Lifting Lever with Subclass -911/97
56
Adjusting the Presser Bar Lifting Lever Without Subclass -911/97
57
Adjusting the Thread Trimmer -900/56
58
Engaging Solenoid
58
Control Cam (Preliminary Adjustment)
59
Tripping Lever Spring Action
60
Tripping Lever Stroke
61
Thread Catcher Drive Linkage
62
Thread-Catcher Height
64
Thread Catcher Resting Position
65
Knife Pressure
66
Bobbin-Thread Trapping Spring
67
Control Cam (Final Adjustment)
68
Release Lever
69
Release Rod
70
