Installation and commissioning
8 - 2

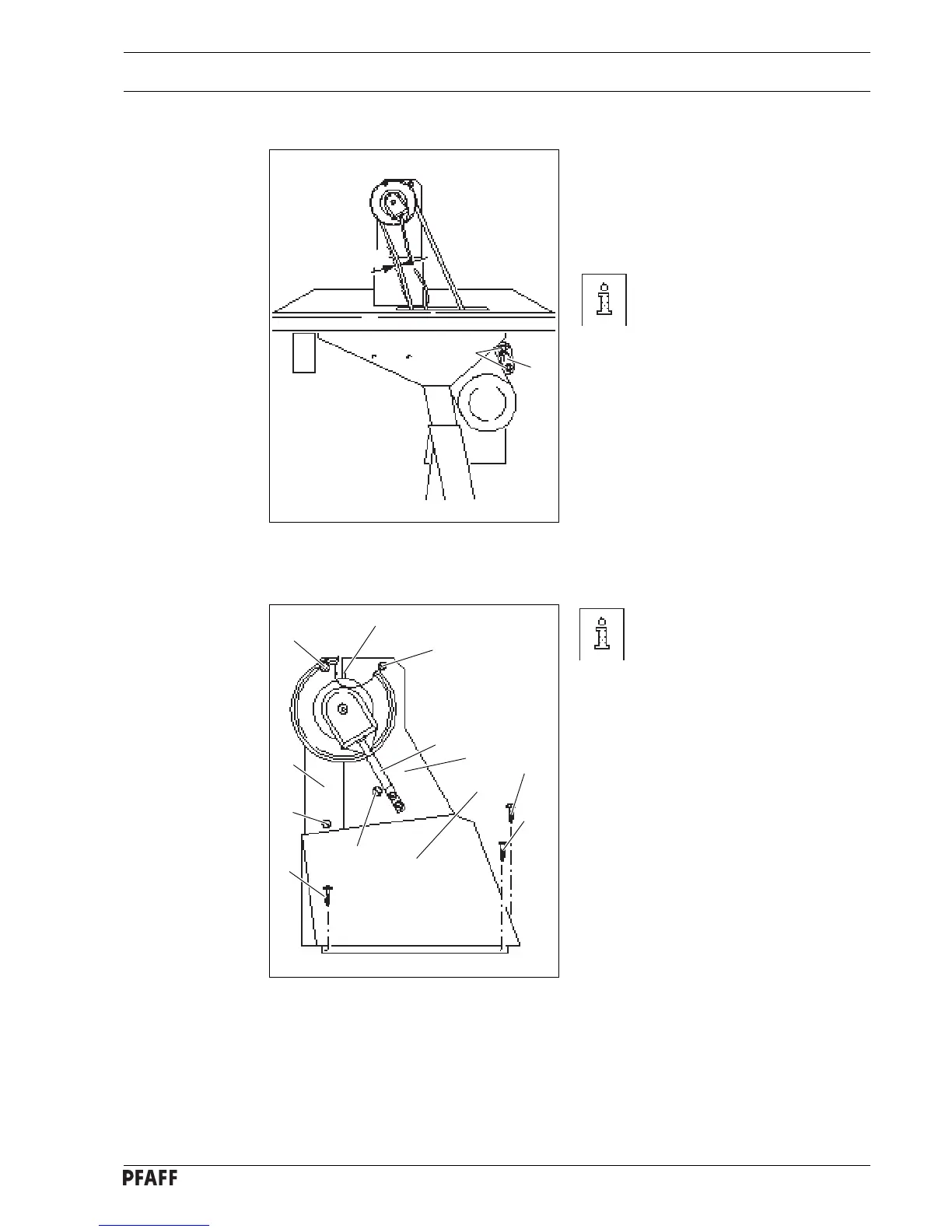

8.01.03 Fitting the upper V-belt guard
If a large balance wheel is used,
the corner 1 of the belt guard 3
must be broken out.
● Screw position stop 2 to the belt guard
section 3.
● Attach belt guard section 3 with the
screws 4.
● Attach belt guard section 5 with the
screws 6.
● Attach belt guard section 7 to the table
top with wood screws 8.
8.01.02 Adjusting the V-belt tension
● Loosen nuts 1.
● Tighten the V-belt with belt take-up
bracket 2.
● Tighten nuts 2.
Fig. 8-02 shows a Quick motor.
If another motor is used,
proceed as described in the
motor’s instruction manual.
Fig. 8 - 02
Fig. 8 - 03
2 cm
1
2
1
5
3
2
6
6
4
4
8
8
8
7
