11.05.05 Thread-catcher drive linkage
Requirement
1. On the PFAFF 294 and PFAFF 1294 thread-catcher drive linkage 1 must have a length
of 128 mm, less half of the needle gauge.
On the PFAFF 1293 thread catcher drive linkage 1 must have a length of 128 mm.
2. When the threa trimmer is in its resting position there must be a clearance of about
1 mm between plunger 5 and lever 6.
128 mm
2
2
1
3
5
6
1 mm
4

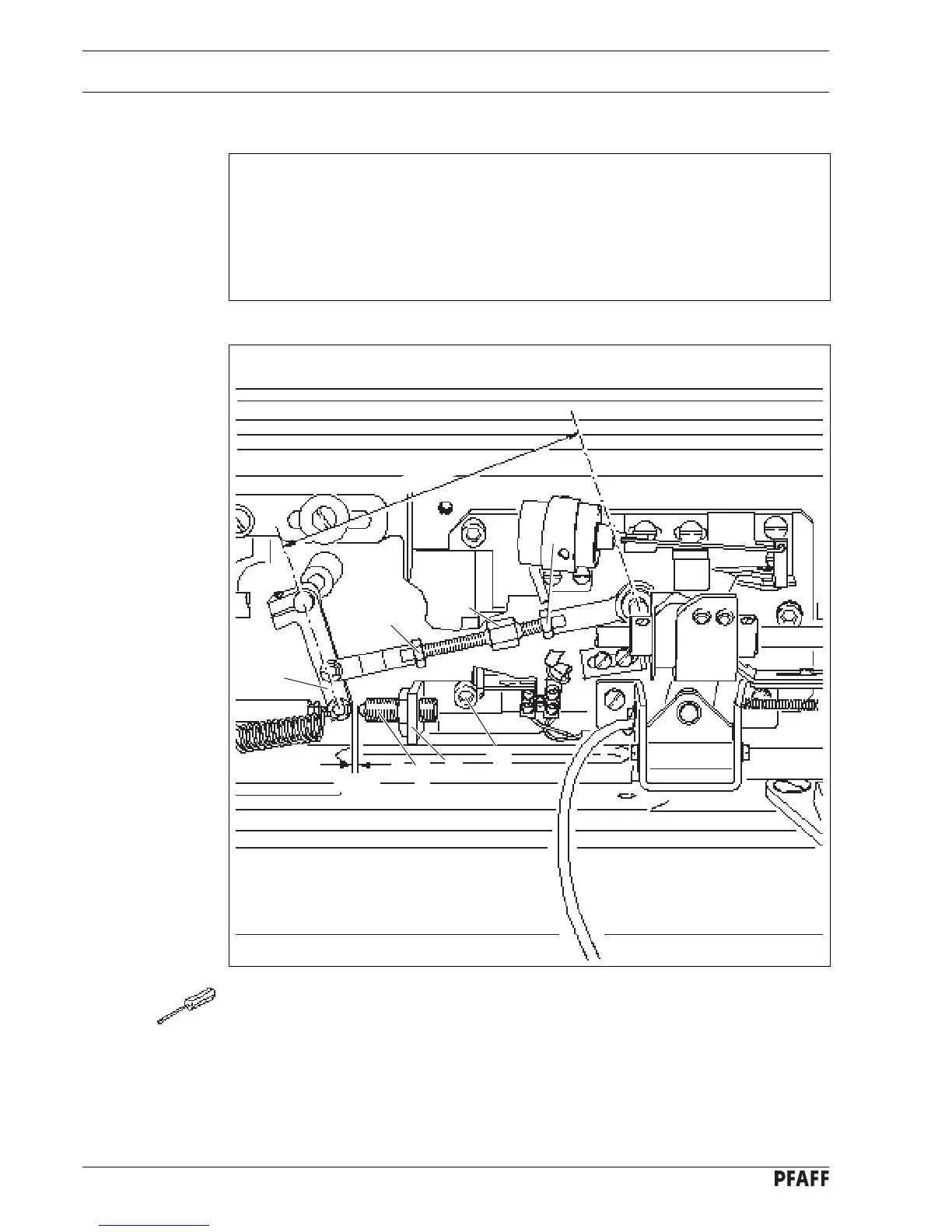

Fig. 11 - 25
● Turn thread-catcher drive linkage 1 (nuts 2) to adjust it according to Requirement 1.
● Re-position bracket 3 (screw 4) according to Requirement 2.
