Pfaff 294 - Clearance between Roller Presser and Needle Plate

Adjustment
11 - 15
11.04.13 Clearance between roller presser and needle plate
Requirement
The clearance between the raised roller presser and the needle plate must be 5 mm
..
..
.

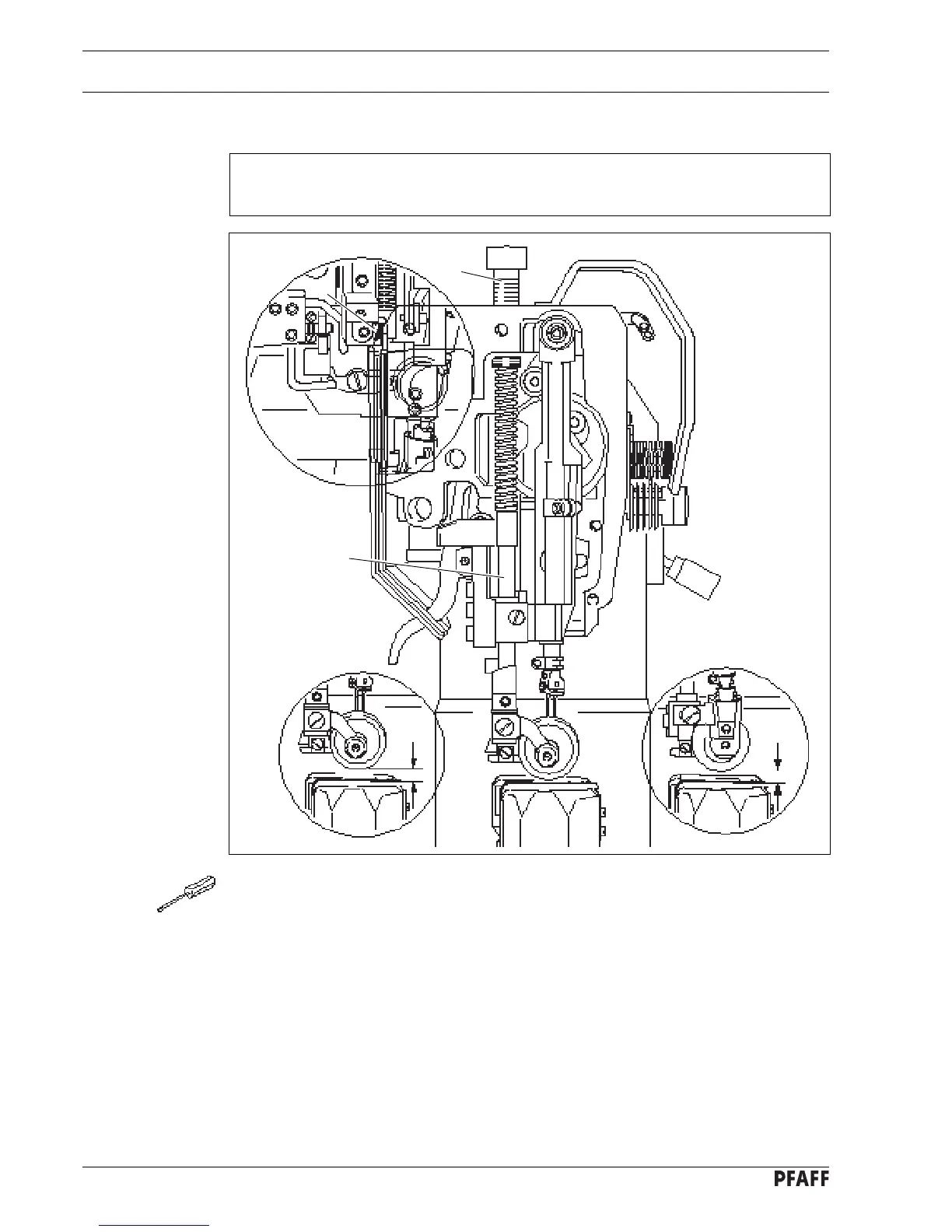

Fig. 11 - 13
● Raise roller presser with the presser bar lifter.
● Reduce the pressure on the roller pressure (screw 1).
● Move presser rod 2 (screw 3) in accordance with the
requirementrequirement
requirementrequirement
requirement.
● Carry out the adjustment in accordance with Chapter 11.04.14 Pressure of roller presser.
1
2
3
5 mm
5 mm
