8 - 3
Installation and commissioning

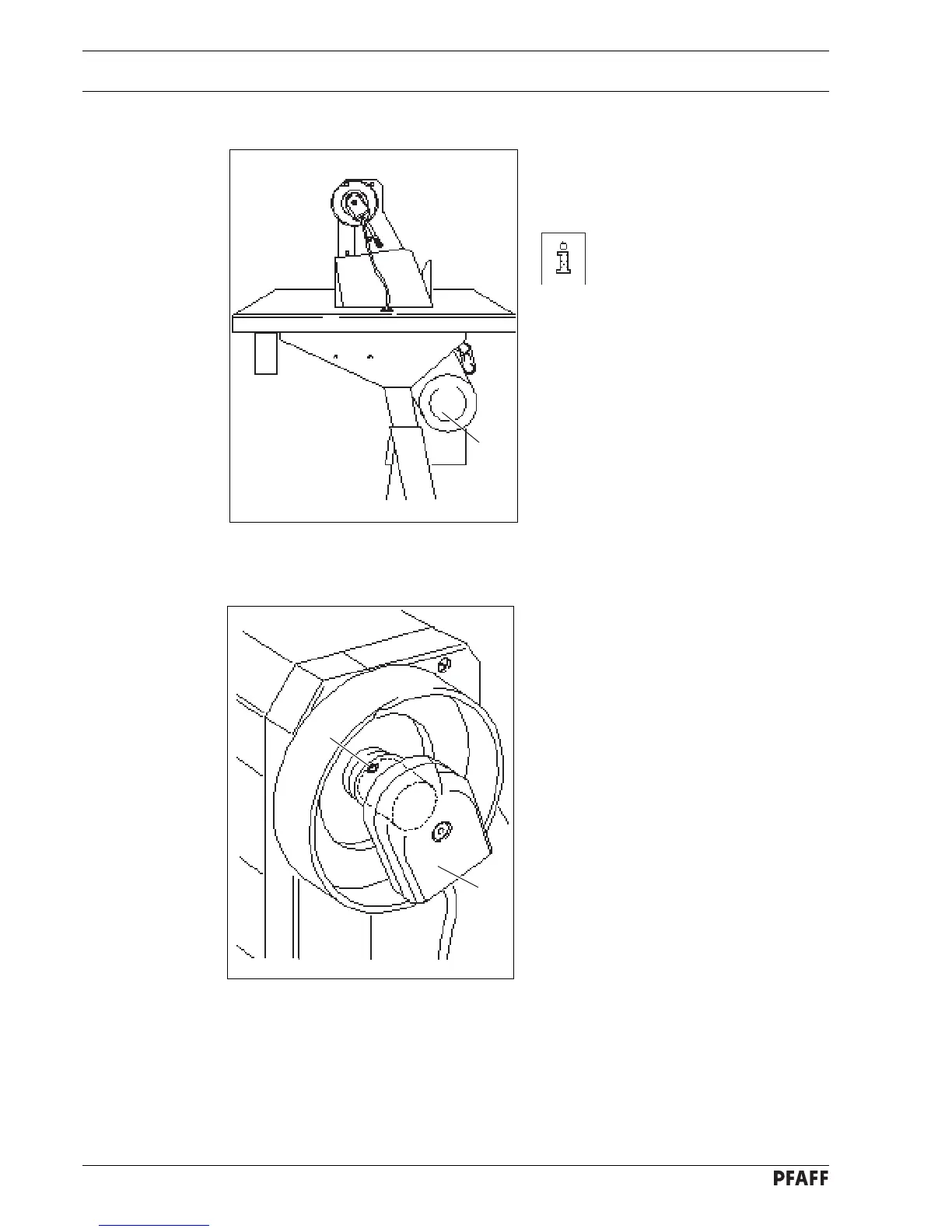

8.01.04 Fitting the lower V-belt guard
Align belt guard 1 in such a way that both
the motor pulley and the V-belt run freely.
Fig. 8-04
shows a Quick motor.
If another motor is used,
proceed as described in the
motor’s instruction manual.
Fig. 8 - 04
1
Fig. 8 - 05
8.01.05 Fitting the synchronizer
Slide synchronizer 1 onto the shaft.
Slightly tighten screws 2.
Insert plug of the synchronizer into the
control box.
Adjust synchronizer (see Chapter
11.05.14 Adjusting the synchronizer).
2
1
