Adjustment
11 - 17
11.04.15 Needle thread tension release
Requirement
With the roller presser raised, the two tension discs 4 must be at least 0.5 mm apart.

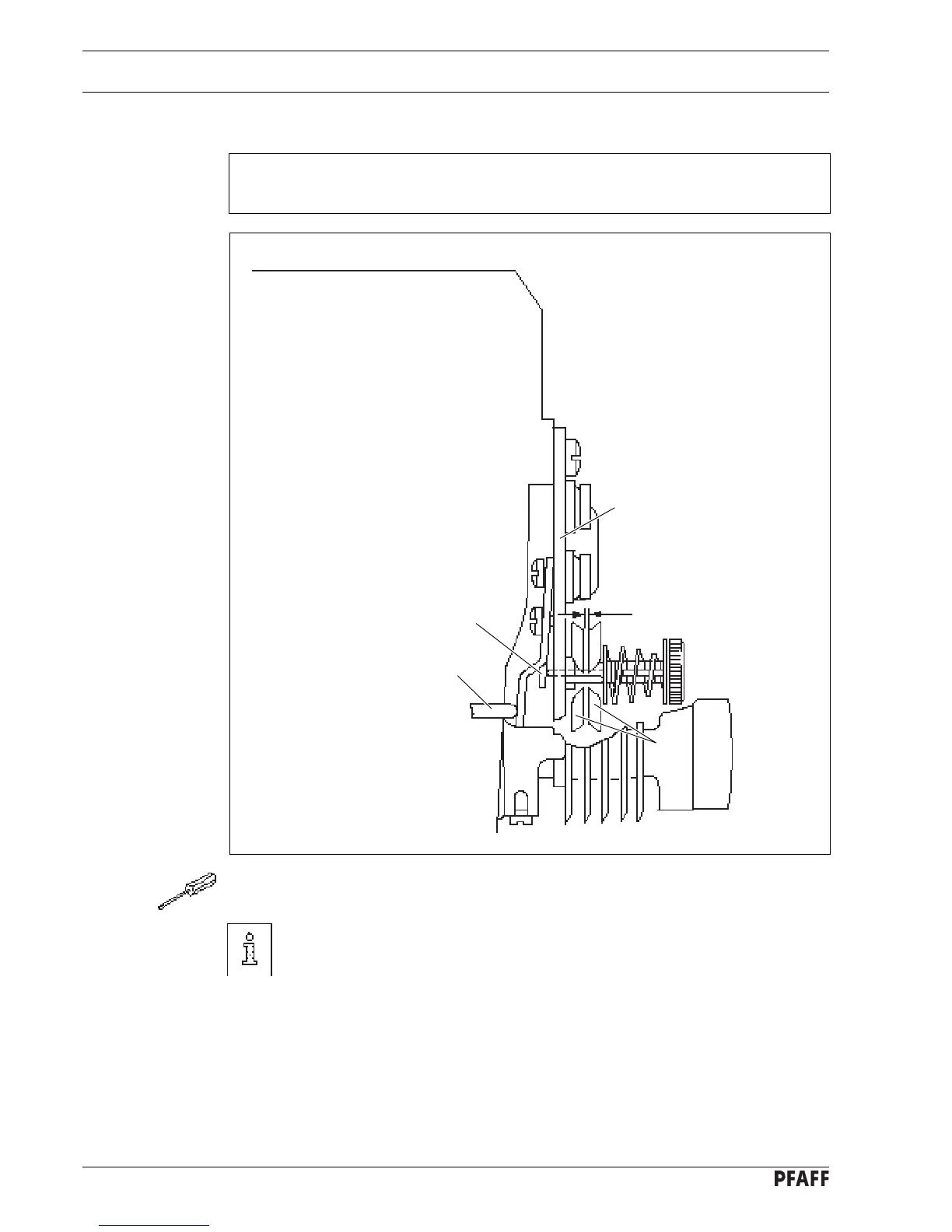

Fig. 11 - 15
Align pressure plate 1 behind tension carrier plate 2 in accordance with the requirement
..
..
.
The clearance of 0.5 mm is a minimum and can increase to more than 1 mm
when thick threads are used.
If the tension is correct, release pin 3
should not be under pressure.
2
4
1
3
0,5 mm
