Setting up
9 - 1
9.01 Inserting the needle in the PFAFF 1293
Turn the machine off!
Danger of injury if the machine
is started accidentally!
Use only system 134 needles.
● Raise the roller presser and swing it out.
● Raise the needle bar as far as possible
and loosen screw 1.
● Insert the needle
22
22
2 as far as possible (the
long needle groove must be facing left).
● Tighten screw 1.
9 Setting up
All regulations and instructions in this instruction manual are to be observed.
Special attention is to be paid to all Notes on Safety!
All setting up work is only to be carried out by appropriately trained personnel.
Before all setting up work, the machine is to be switched off at the on/off switch
or disconnected from the electricity supply by removing the plug from the
mains!

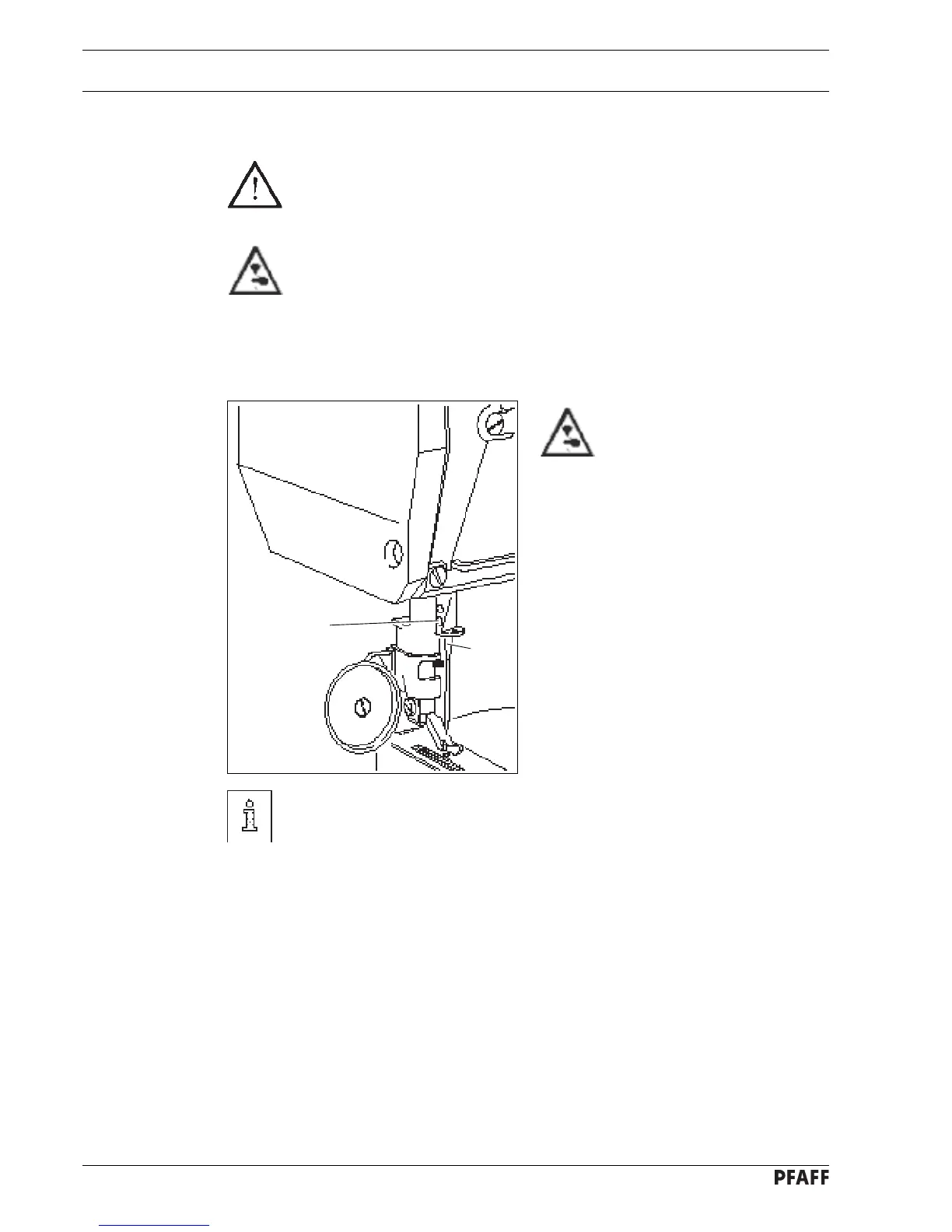

Fig. 9 - 01
The choice of needle depends on the machine model and the material and thread
being used (see Chapter 3 Specifications).
