Adjustment
11 - 10
11.04.09
Releasing the roller presser for reverse sewing
(only on machines with
subcl. -4/01
)
Requirement
1. For reverse sewing, the roller presser must be released (cylinder 8 extended).
2. When the roller presser and feed dog are lowered, the clearance between tension pin 6
and bearing 7 should be 0.5 mm, if cylinder 8 has not been extended.

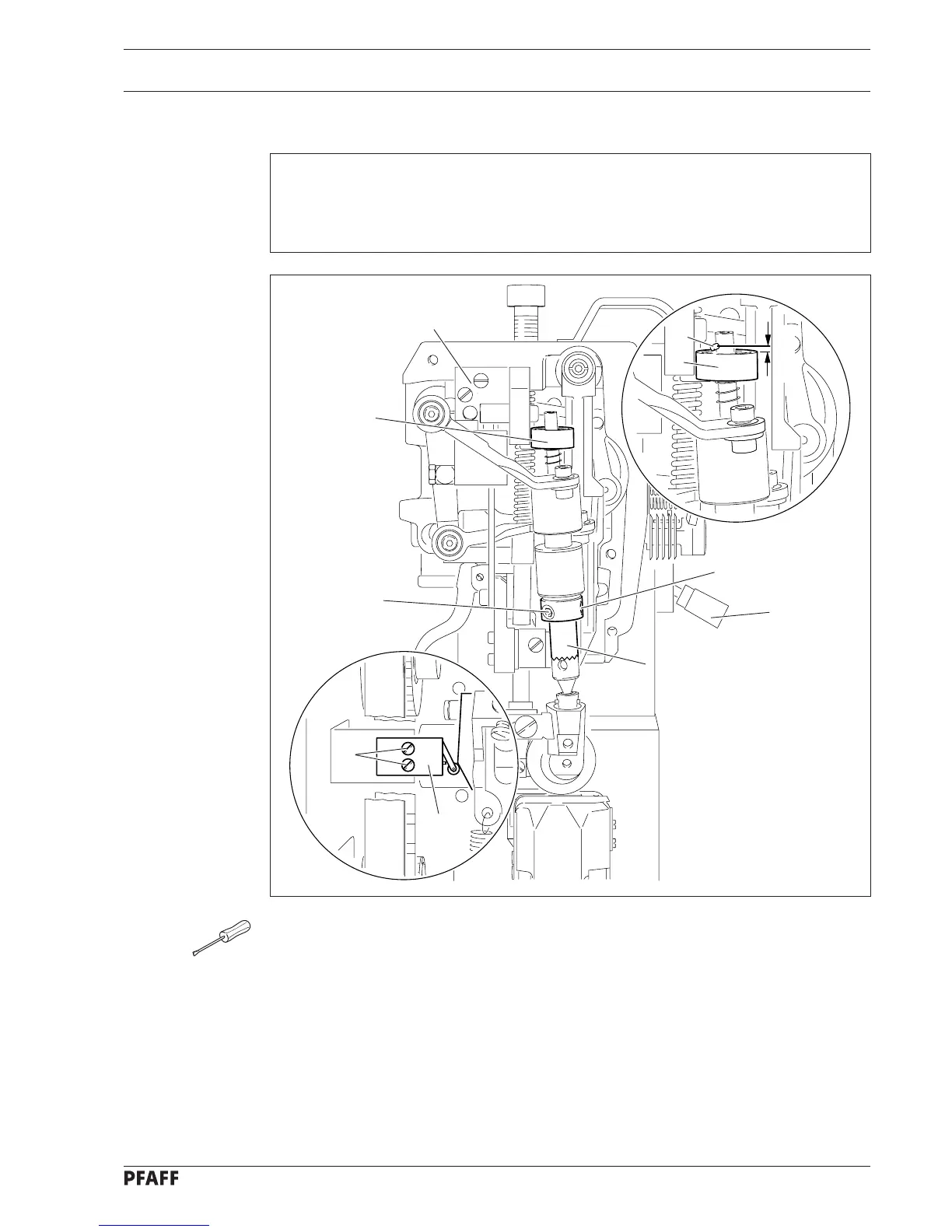

Fig. 11 - 09
Adjust valve 1 (screws 2) so that it is positioned between the settings 0 and 1 on the
gauge if lever 3 is operated.
Adjust coupling part 4 (screws 5) in accordance with requirements 1 and 2.
3
4
5
5
7
0,5 mm
6
7
8
2
1
