Care and maintenance
10 - 3
10.04 Lubricating the hook
Turn the machine off!
Danger of injury if the machine
is switched on accidentally!
Open the hook compartment cover.
Raise the needle bar as far as possible.
Insert 1 - 2 drops of oil into the hole 1 in
the hook gib.
Insert a few drops of oil into the hook
race (see arrow).
Only use oil with a mean
viscosity of 22.0 mm²/s at
40° C and a density of
0.865 g/cm
3
at 15° C!
We recommend PFAFF
sewing machine oil,
part No. 280-1-120 144.

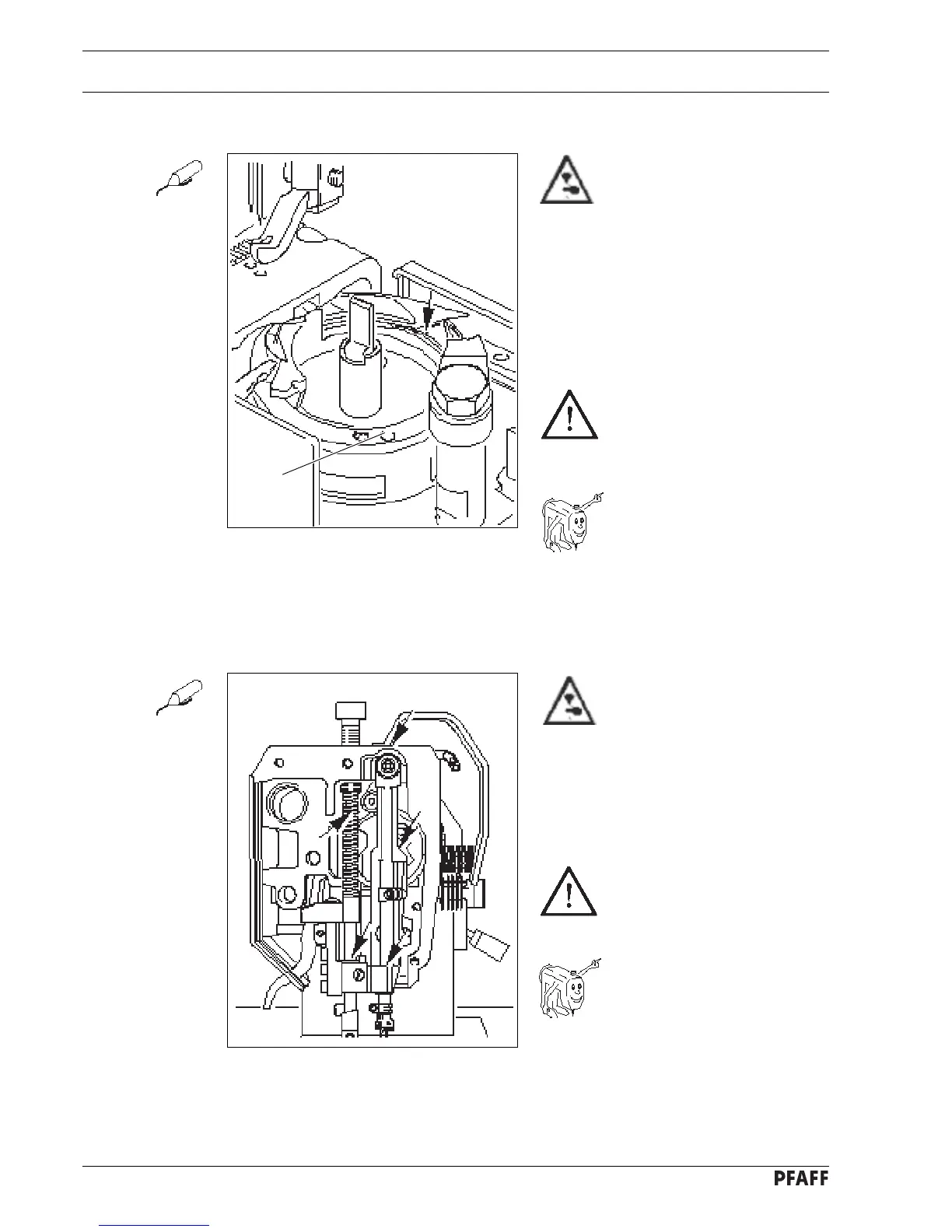

Fig. 10 - 03
1
10.05 Lubricating the needle-head parts
Turn the machine off!
Danger of injury if the machine
is switched on accidentally!
Unscrew the face plate.
Lubricate all bearings and moving parts
(see arrows) twice a week.
Re-fit the face plate.
Only use oil with a mean
viscosity of 22.0 mm²/s at
40° C and a density of
0.865 g/cm³ at 15° C!
We recommend PFAFF
sewing machine oil,
part No. 280-1-120 144.
Fig. 10 - 04
