Adjustment
11 - 28

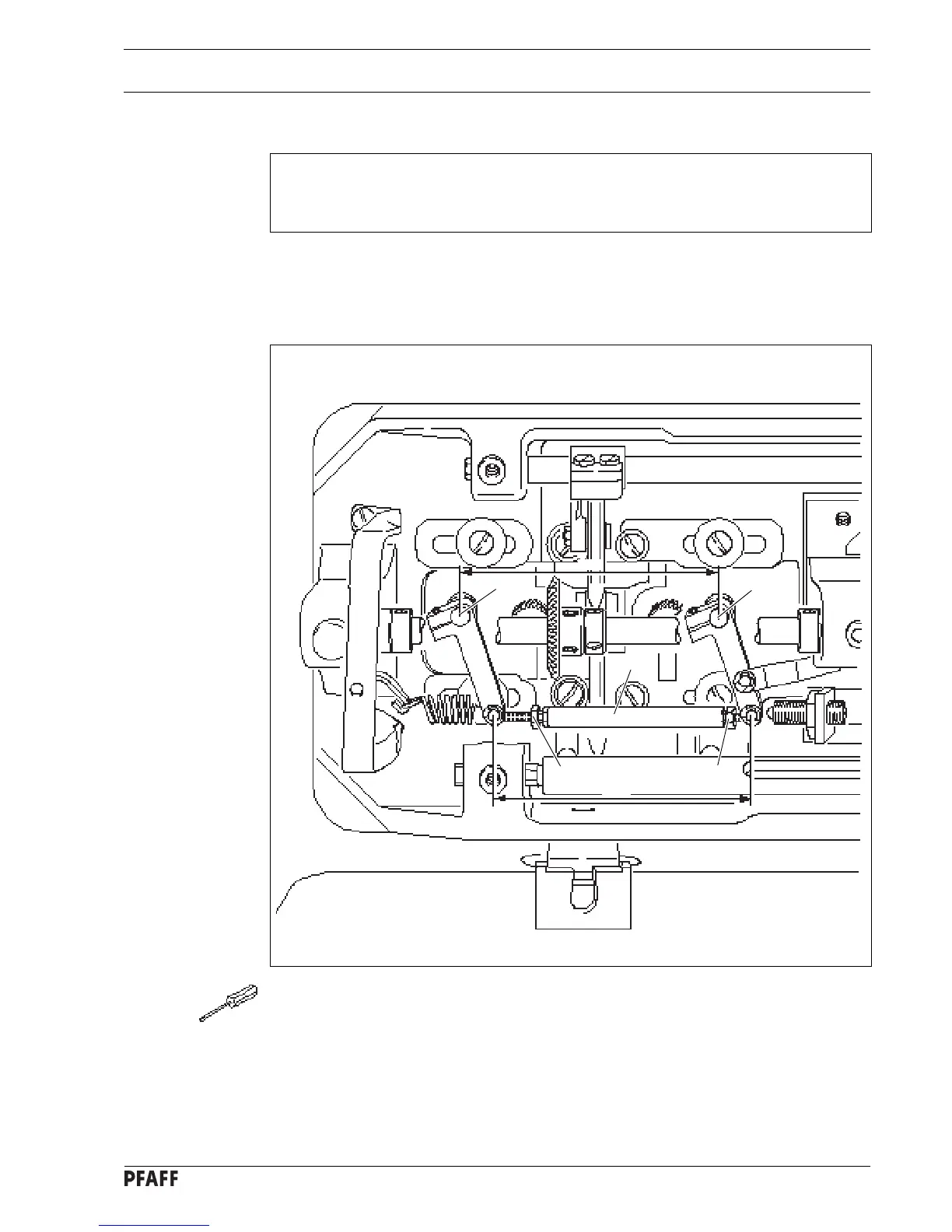

11.05.06 Linkage bar ( only on the PFAFF 294 and PFAFF 1294 )
Requirement
The length of linkage bar 1 must be the same as the distance between the two thread-
catcher drive shafts 3.
● Adjust middle section 1 (nuts 2) of the linkage bar according to Requirement.
2
1
2
3
3
=
=
Fig. 11 - 26
