Mounting and commissioning the machine

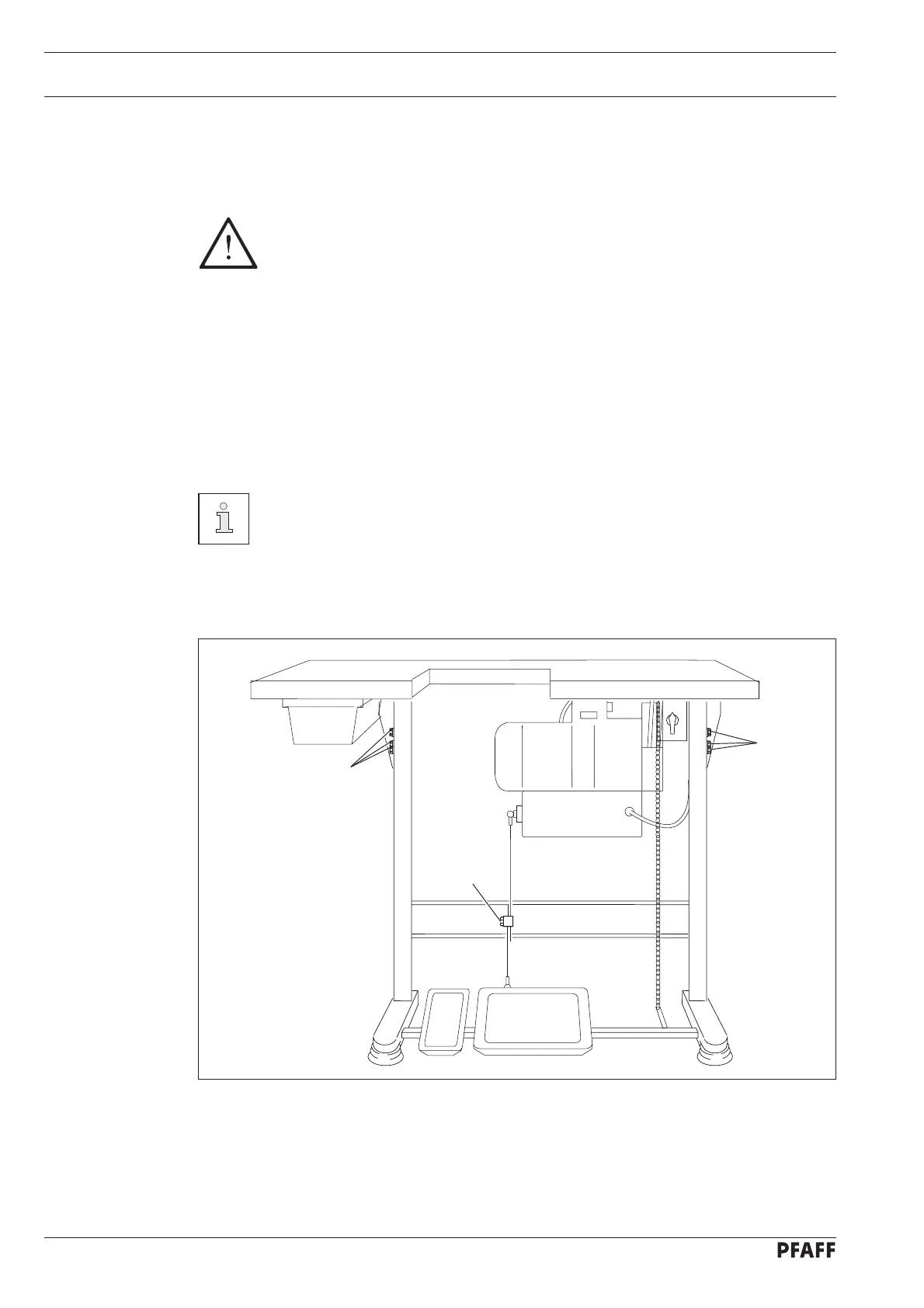

Fig. 8 - 01
1
2
1
8 Mounting and commissioning the machine
The machine must only be mounted and commissioned by qualified personnel!
All relevant safety regulations are to be observed!
If the machine is delivered without a table, be sure that the frame and the table
top which you intend to use can hold the weight of the machine and the motor.
It must be ensured that the supporting structure is sufficiently sturdy, even
during sewing operations.
8.01 Installation
The site where the machine is installed must be provided with suitable connections for the
electric current, see Chapter 3 Specifications.
It must also be ensured that the standing surface of the machine site is firm and horizontal,
and that sufficient lighting is provided.
For packing reasons the table top is in the lowered position. The table height is
adjusted as described below.
8.01.01 Adjusting the table height
● Loosen screws 1
and 2 and set the table height as required.
● Firmly tighten screw 1.
● Set the required pedal position and tighten screws 2.
