11 - 14
Adjustment
11. 04.13 Bobbin winder
Requirement
1. With the bobbin winder engaged the winder spindle must be driven reliably. With the
bobbin winder disengaged, however, the friction wheel 5 must not touch the drive
wheel 1.
2. The bobbin winder must stop automatically when the thread wound on the bobbin has
reached a point approx. 1 mm below the bobbin rim.
● Adjust the drive wheel 1 (screws 2) in accordance with requirement 1.
● Place a bobbin on the winder spindle, thread the bobbin and switch on the bobbin
winder.
● Shift the regulating pin 3 (screws 4) in accordance with requirement 2.
2
3
4
51

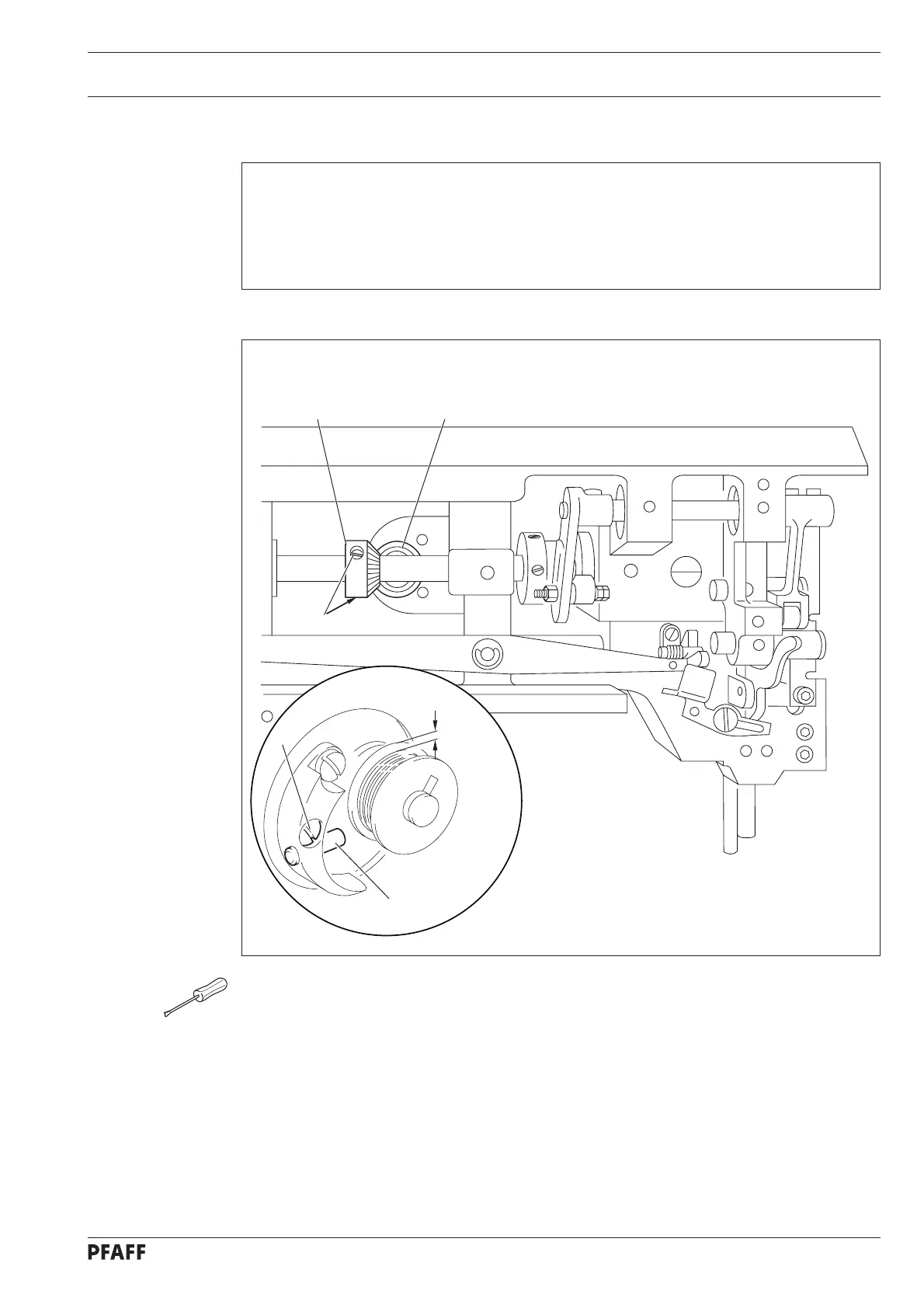

Fig. 11 - 13
1 mm
