Care and maintenance
10 - 4
Switch off the machine!
Danger of injury due to unintentional starting of the machine!
All bevel gears must be supplied with new grease once a year.
Top bevel gears
● Unscrew the cover on the rear side of the machine.
● Apply fresh grease to the top bevel gears 1.
● Screw the cover to the rear side of the machine again.
Bottom bevel gears
● Remove screw 2 and tilt the machine back.
● Apply fresh grease to the bottom bevel gears 3.
Use both hands to set the sewing head upright!
Danger of crushing between the sewing head and the table top!
● Retighten screw 2.
We recommend PFAFF sodium grease with a dripping point of approx. 150C,
Order No. 280-1-120 243.
10.06 Lubricating the bevel gears

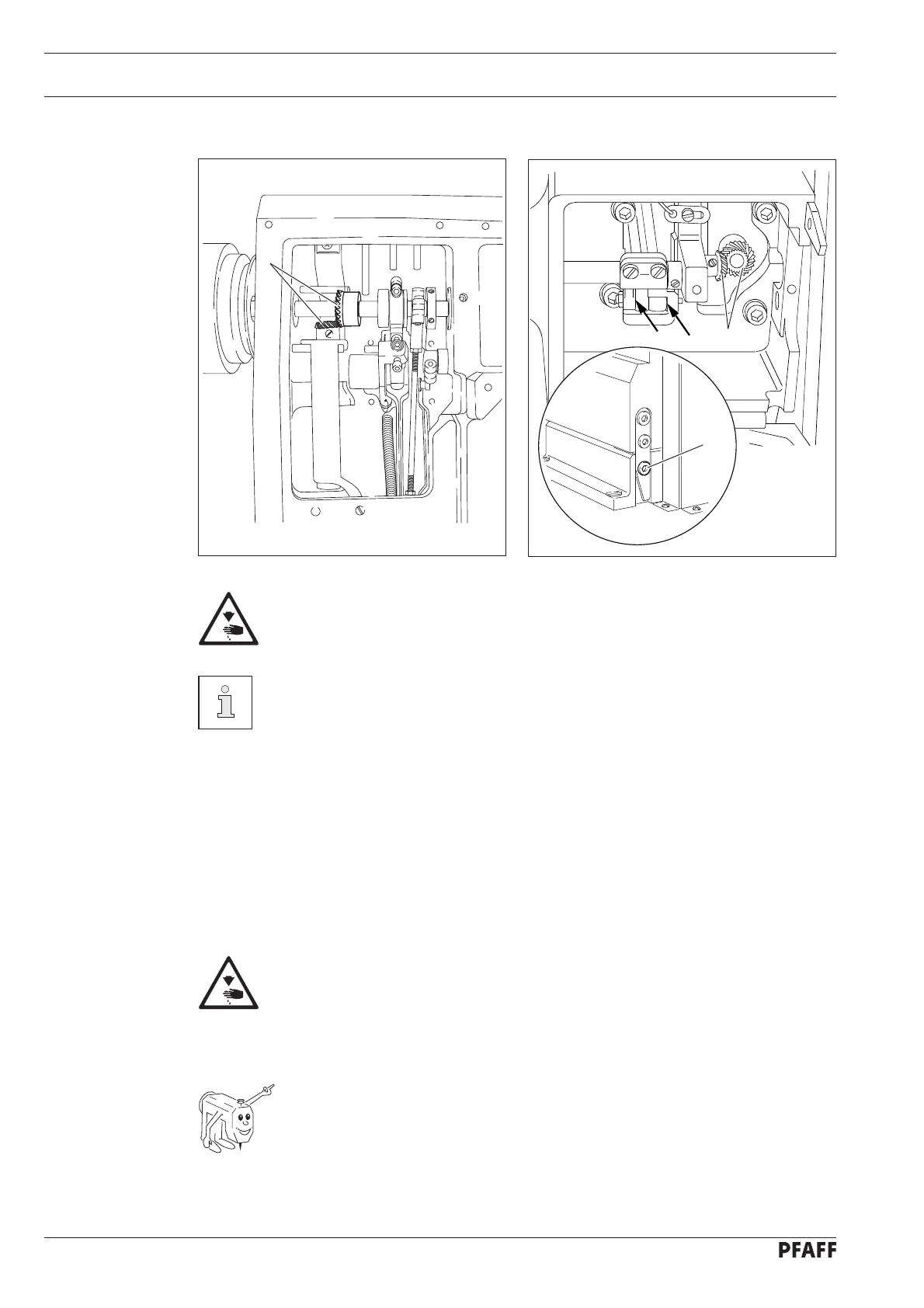

Fig. 10 - 07
3
2
Fig. 10 - 06
1
